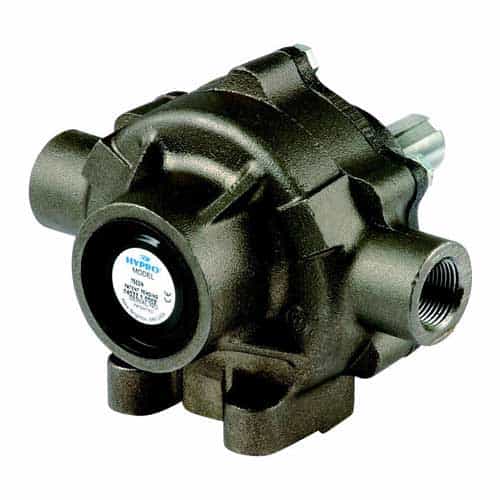

Hypro 7560N Counterclockwise Eight Roller Pump - 300 PSI, 1000 RPM, 22.5 GPM
Brand:
Mfr. Model #:
7560N
KR Part #:
HY7560N
Weight:
13.00 lbs
GTIN:
734943001243
Call For Availability
Cast iron spraying and transfer pump with four rollers and a cast iron rotor. 3/4" FNPT x 3/4" FNPT ports.
Technical Specifications
Inlet Port: 3/4 inch
Max GPM: 2.25
Max PSI: 300
Max Temperature: 140 degrees F
RPM: 1000
Shaft Diameter: 15/16 inch
Product Description
Small to Medium Application Spray Pump
The Hypro 7560N Roller Pump is designed for car wash, agricultural, and industrial spraying and fluid transfer. This includes soaps, detergents, emulsives, herbicides, insecticides, fertilizers, aromatic solvents, and many more. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.
Ideal for small to medium level spraying, the Hypro 7560N Pump is chemical resistant, polymer coated, and has a counterclockwise rotation.
Speciifications:
- Maximum Flow: 22.5 GPM
- Flow Rate at 540 RPM: 12 GPM
- Maximum Pressure: 300 PSI
- Maximum Continuous Pressure: 100 PSI
- Maximum RPM: 1000 RPM
- Inlet: 3/4" FNPT
- Outlet: 3/4" FNPT
- Pump shaft rotation: Counterclockwise
- Housing: Cast iron
- Rotor: Cast iron
- Roller Quantity: 8
- Shaft Seals: Viton
- Shaft: 15/16" solid stainless steel
- Maximum Fluid Temperature: 140° Fahrenheit
- Mounting Bolts: 2 X 5/16-18 UNC
- Weight: 13.5 lbs.
