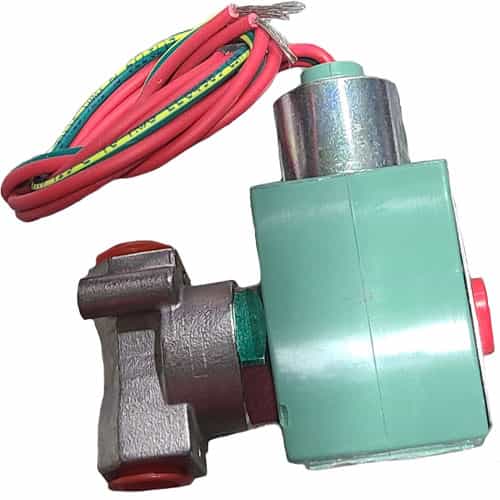

ASCO 8262H007 Stainless Steel 2-Way Normally Closed Solenoid Valve, 1/4 In Ports, 185 PSI, 24VAC
Brand:
Mfr. Model #:
8262H007 24/60
KR Part #:
SA161
Weight:
1.12 lbs
In Stock
2-way normally closed solenoid valve with stainless steel construction. Used for water, air, inert gases and light oil in car washes. Compatible with 24VAC electrical connections.
Product Description
24 VAC Solenoid Valve
The ASCO 8262H022 is designed to handle applications involving air, inert gases, light oil, and water. Valve features a 2-way normally closed configuration. Constructed to handle a maximum pressure of up to 185 PSI, depending on the medium, with a minimum operating pressure differential of 0 PSI. Made with stainless steel and NBR seals.Specifications:
- Valve Configuration: 2-Way, Normally Closed
- Media: Air, Inert Gases, Light Oil, Water
- Ports: 1/4" FNPT
- Min. Operating Pressure Differential: 0 PSI
- Max. Operating Pressure (Air): 185 PSI
- Max. Operating Pressure (Water): 180 PSI
- Max. Operating Pressure (Lt. Oil): 90 PSI
- Environmental Rating: Indoor, Outdoor
- Voltage: 24VAC
- Flow Factor: 0.35 Cv
- Body Material: Stainless Steel
- Coil Insulation Class: F
- Seal Material: NBR
- Orifice Dia.: 1/8 in
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- IP Rating: 66
- Fluid Temp. Range: -13°F - 180°F
- Watts: 6.1 W
- Coil Enclosure: NEMA
- Approvals: CE, CSA, FM, UL
