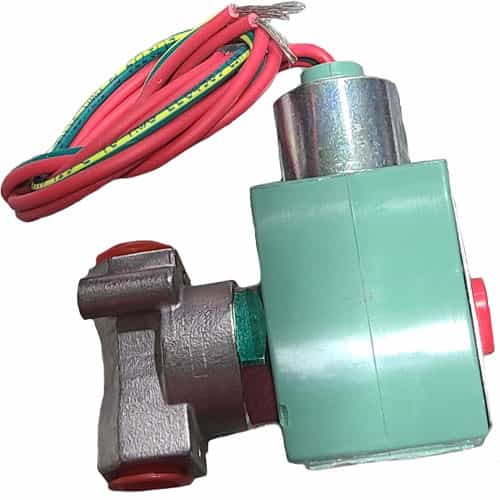

Asco 8262H007 Normally Closed Low Pressure Stainless Steel Solenoid Valve - 120/60 and 110/50
Brand:
Mfr. Model #:
8262H007 120/60
KR Part #:
SA160
Weight:
2.00 lbs
Usually Ships in 2 Weeks
A solenoid valve for general purpose applications. Stainless steel body. Handles a maximum pressure of 165 PSI (water), 140 PSI (Air) and 90 PSI (Oil).
Technical Specifications
Max PSI: 165
Min PSI: 0
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Orifice: 1/8 inch
Orifice: 1/8 inch
Voltage AC: 120/60
Voltage AC: 110/50
Max Temperature: 180 degrees F
Product Description
General Purpose Solenoid Valves
The Asco 8262H007 is a normally closed solenoid valve for general purpose applications. Equipped with 1/4 inch pipe connections. It features a stainless-steel body with Buna N seals. Features watertight enclosure that meets NEMA 1, 2, 3, 3S, 4, and 4X ratings. Compatible with 120/60 and 110/50 electric connections.Specifications:
- Stainless Steel Body
- Buna N Elastomer Seals
- Voltage: 120/60, 110/50 VAC
- 1/4" Pipe Size
- 1/8" Orifice
- Cv=0.35
- Pressure in PSI: Min: 0
- Max: Air=140
- Water=165
- Oil=90
- Max. Media Temperature: 180° F
- Enclosure: Watertight: NEMA 1, 2, 3, 3S, 4, and 4X.
