115V Metering Injection Pump - 31.3 GPD

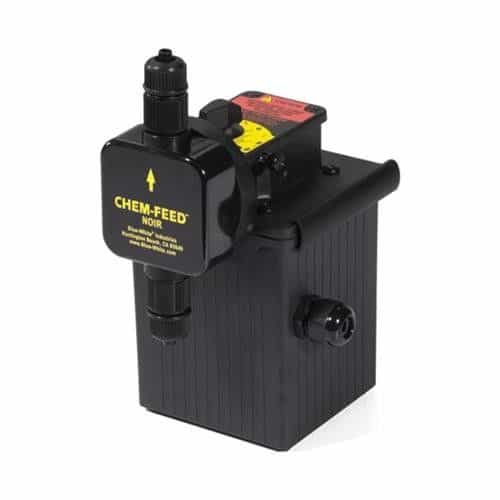

The Blue White C15N302X040V70 metering pump is part of the C-1500N Series designed for effective chemical dispensing. This CHEM-FEED diaphragm pump features a quick-adjusting, high-accuracy mechanical stroke length control.

This efficient metered pump is adjustable and delivers chemicals at a consistent rate; perfect for environments like car washes that require constant daily chemical dispensing.

Dimensions: 9 1/16" x 4 1/2" x 5 3/4"

Specifications:

• 31.3 GPD
• 2.7 ounces per minute
• 115 volt
• 60Hz
• 125 PSI maximum pressure
• 60 RPM maximum speed
• .055 cam stroke length
• Standard output and electrical control options
• Injection-molded PVDF pump head
• Large diaphragm car wash pump head style
• Large PTFE (Teflon)/EP diaphragm style
• Viton elastomers
• PVDF/Polypropylene C-340 foot valve
• 10 foot water suction lift
• 130° Fahrenheit
• 1,000 Centipoise maximum viscosity
• Continuous duty cycle
• NEMA type 3R (IP23)

Features:

• Economic and versatile
• Permanently lubricated ball bearings and gear motor for smooth, quiet, powerful operation
• Stroke adjustment from 5-100% permits accurate small injections at a high rate per minute
• Outdoor rated enclosure
• Durable, chemical-resistant Val ox (PBT) thermoplastic
• PTFE coated EP diaphragm
• Double-ball inlet and outlet cartridge type ceramic check valves
• No metal springs are used

Applications:

• Car wash

• Soap, wax and detergent injection

• Water treatment and conditioning

• Wastewater treatment

• Biocide feed

• Rural water systems

• Cooling tower & boiler treatment

• Fertilizer and nutrient injection

• Pool chlorination & PH control
