Rotary Pump

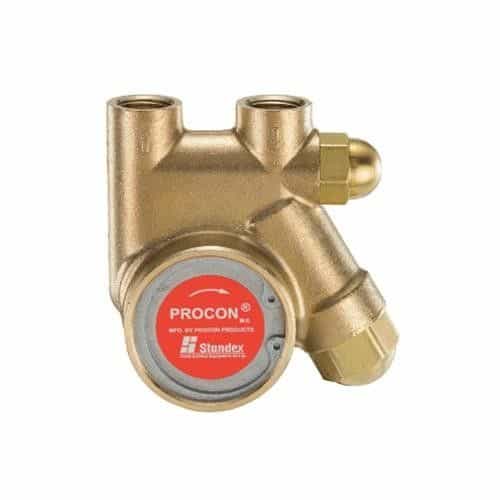

Procon's 101E100R11BB is a Series 1 positive displacement rotary vane pump is made to be self-priming in water with a 6 ft. maximum lift. This pump features port sizes with 3/8 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Typically used in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:


• Product Classification: Rotary Vane Pump

• Agency Approvals: NSF STD. 169 Listed (1.5% Max Lead)

• Series: Series 1 Brass - Integral Strainer

• Mounting and Drive Configuration: Bolt on With Single Flat Drive

• Flowrate: 100 GPH

• Elastomer: Fluorocarbon - Type 21 Seal

• Rotation / Slinger / Passivation / Strainer: Clockwise

• Clearances: Standard Clearance

• Valve Type and Configuration: Plastic, Hi Temp-Solid

• Pressure Range: 100 to 150 PSI

• Body Material Type: Brass

• Nominal Speed: 1725 RPM

• Typical Horsepower Required: .25 To .50 HP

• Rotation (Viewed from Nameplate End): Clockwise

• Dry Weight: Approximately 2.5 Lbs.

• Dimensions: 3.56" X 3.49" X 3.86"

• Self-Priming (Water): 6 Ft. Maximum Lift

• Port Size: 3/8 NPT Inlet and Outlet


Applications:


• Carbonation

• Espresso/Coffee

• Welding

• Cold Carb Circulation

• Reverse Osmosis

• Beer Chillers

• Pesticide Systems

• Solar Applications
