Clamp On Pump

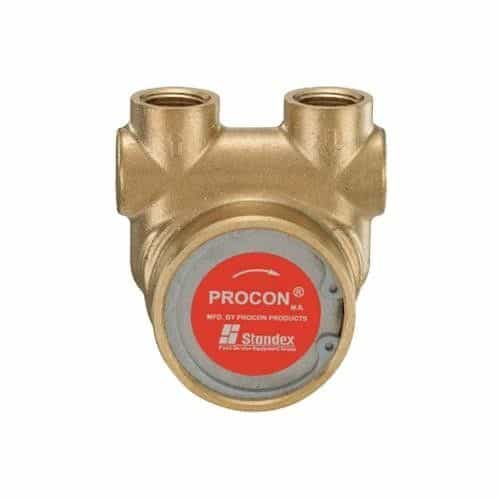

Procon's 102E140R11BB is a Series 2 positive displacement rotary vane pump is capable of self-priming in water with a 6 ft. maximum lift. This pump is equipped with 3/8 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Ideal for use in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:

• Product Classification: Rotary Vane Pump
• Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval
• Series: Series 2 Brass
• Mounting and Drive Configuration: Clamp On With .188" Double Flat Drive
• Flowrate: 140 GPH
• Elastomer: Fluorocarbon - Type 21 Seal
• Rotation / Slinger / Passivation / Strainer: Clockwise
• Clearances: Standard Clearance
• Valve Type and Configuration: Plastic, Hi Temp-Solid
• Pressure Range: 100 to 150 PSI - Default Setting 130 PSI
• Body Material Type: Brass
• Nominal Speed: 1725 RPM
• Typical Horsepower Required: .25 To .50 HP
• Rotation (Viewed from Nameplate End): Clockwise
• Dry Weight: Approximately 2.5 Lbs.
• Dimensions: 3.56" X 3.49" X 3.86"
• Self-Priming (Water): 6 Ft. Maximum Lift
• Port Size: 3/8 NPT Inlet and Outlet

Applications:

• Carbonation
• Espresso/Coffee
• Welding
• Cold Carb Circulation
• Reverse Osmosis
• Beer Chillers
• Pesticide Systems
• Solar Applications
