Clamp-On Rotary Pump

Rotary Pump

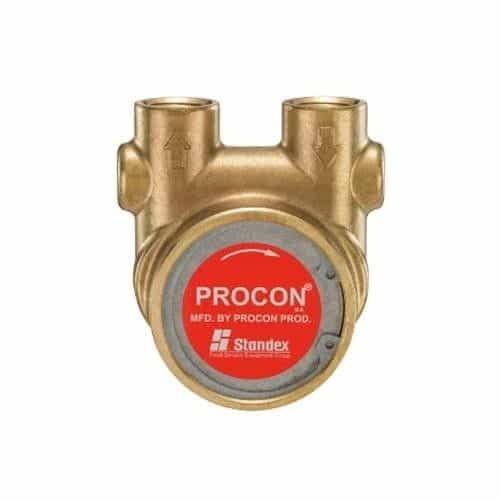

Procon's Series 4 104E165F11XX is a clamp on positive displacement rotary vane pump is designed to self-prime in water with a 6 ft. maximum lift. This pump features port sizes with 1/2 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Typically used in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:

• Product Classification: Rotary Vane Pump

• Agency Approvals: Non-Food Grade (1.5% Max. Lead)- No Agency Approval

• Series: Series 4 Brass

• Mounting And Drive Configuration: Bolt On With Single Flat Drive

• Flowrate: 165 GPH

• Elastomer: FDA Grade Nitrile - Type 21 Or Type 2106 Used Interchangeably

• Rotation / Slinger / Passivation / Strainer: Clockwise

• Clearances: Standard Clearance

• Valve Type and Configuration: No Relief Valve

• Pressure Range (Relief Valve Spring): No Setting

• Body Material Type: Brass

• Nominal Speed: 1725 RPM

• Typical Horsepower Required: .25 To 1.50 HP

• Maximum Discharge Pressure: 250 PSI

• Rotation (Viewed from Nameplate End): Clockwise

• Weight: 4.00 lbs.

• Dimensions: 4.1" x 3.88" x 4.48"

• Self-Priming (Water): 6 Ft. Maximum Lift

• Port Size: 1/2 NPT Inlet and Outlet


Applications:

• Circulation

• Reverse Osmosis

• Booster Pumps

• Solar Applications

• Hydraulic Systems

• Desalination
