Brass 240 GPH Rotary Vane Pump

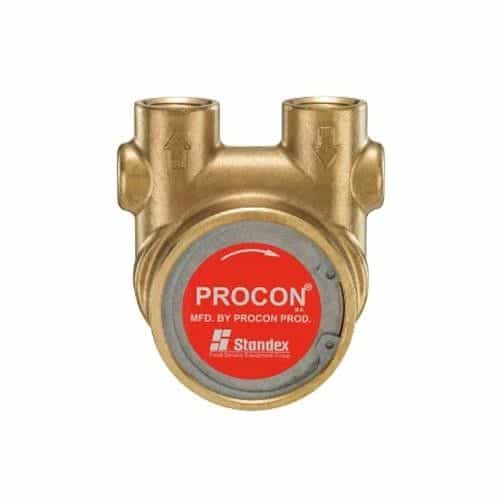

The Procon 104E240R11BA pump is a brass rotary vane pump that is part of Procon's Series 4 line. This positive displacement pump has 1/2" inlet and outlet ports, Neoprene type 21 elastomer seals, and a plastic high-temperature valve. It boasts a 240 GPH flow rate and a 151-250 PSI pressure range.

This Series 4 rotary vane pump has low-vibration operation and self-priming capabilities. It is ideal for reverse osmosis and boosting applications. Bolt-on style mounting.

Dimensions: 4.1" x 3.88" x 4.48"

Specifications:

• Mounting and Drive: Bolt-On with Single Flat Drive
• Flow Rate: 240 GPH
• Elastomer: Type 21 Neoprene Seals
• Rotation: Clockwise
• Clearances: Standard
• Valve Type and Configuration: Hi-Temp Solid
• Pressure Range: 151-250 PSI
• Body Material: Brass
• Nominal Speed: 1725 RPM
• Self Priming: 6' maximum lift
• Inlet Port: 1/2" NPT
• Outlet Port: 1/2" NPT

Features:

• Self Priming
• Maintenance Free
• Low Vibration and Pulsation Characteristics

Applications:

• Circulation
• Reverse Osmosis
• Booster
• Solar Applications
• Hydraulic Systems
• Desalination
