Rotary Pump

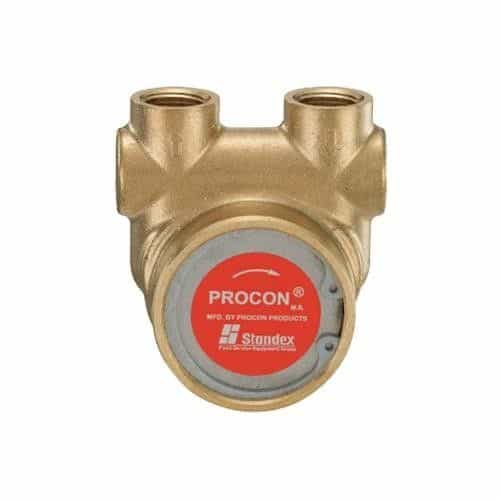

Procon's 112B100F31XX is a Series 1 positive displacement rotary vane pump features a clamp on design with a 1143 bronze coupling system. Self-primes in water with a 6 ft. maximum lift. This pump features port sizes with 3/8 NPT inlet and outlet ports. Engineered to produce lower vibration and pulsation levels. Typically used in carbonation, espresso/coffee, welding, cold carb circulation, reverse osmosis, beer chillers, pesticide systems, and solar applications.

Specifications:

• Product Classification: Rotary Vane Pump
• Agency Approvals: NSF STD. 169 Listed (1.5% Max Lead)
• Series: Series 1 Brass - Integral Strainer
• Mounting and Drive Configuration: Clamp on with 1143 Bronze Coupling
• Flowrate: 100 GPH
• Elastomer: FDA Grade Nitrile - Type 21 or Type 2106 Used Interchangeably
• Rotation / Slinger / Passivation / Strainer: Clockwise
• Clearances: Standard Clearance
• Valve Type and Configuration: No Relief Valve
• Pressure Range: No Setting
• Body Material Type: Brass
• Nominal Speed: 1725 RPM
• Typical Horsepower Required: .25 To .50 HP
• Maximum Discharge Pressure: 250 PSI
• Rotation (Viewed from Nameplate End): Clockwise
• Dry Weight: Approximately 2.5 Lbs.
• Dimensions: 3.56" X 3.49" X 3.86"
• Self-Priming (Water): 6 Ft. Maximum Lift
• Port Size: 3/8 NPT Inlet and Outlet

Applications:

• Carbonation
• Espresso/Coffee
• Welding
• Cold Carb Circulation
• Reverse Osmosis
• Beer Chillers
• Pesticide Systems
• Solar Applications
