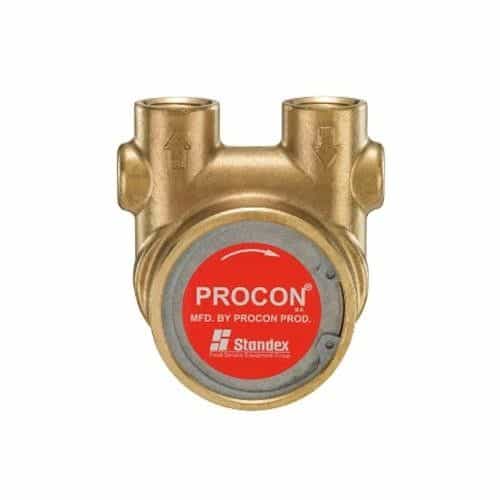

Procon 104B165F11BA Series 4 Clamp-On Rotary Vane Pump - 165 GPH, 1/2 in. Ports
Brand:
Mfr. Model #:
104B165F11BA
KR Part #:
PPCB2504X
Weight:
23.00 lbs
Usually Ships in 3 Weeks
Brass rotary vane pump with 1/2" ports and a 165 GPH flow rate. Made with brass. Handles a maximum of 250 PSI.
Technical Specifications
Inlet Port: 1/2 inch
Max PSI: 250
RPM: 1725
Max GPM: 2.75
Product Description
Brass 165 GPH Rotary Vane Pump
The Procon 104B165F11BA pump is a brass rotary vane pump that is part of Procon's Series 4 line. This positive displacement pump has 1/2" inlet and outlet ports, FDA grade nitrile seals, and a clamp-on mount. It has a 165 GPH flow rate and a 151-250 PSI pressure range.
This Series 4 rotary vane pump has low-vibration operation and self-priming capabilities. It is ideal for reverse osmosis and boosting applications.
Dimensions: 4.1" x 3.88" x 4.48"
Specifications:
- Mounting and Drive: Clamp-On with 1143 Bronze Coupling
- Flow Rate: 165 GPH
- Elastomer: FDA Grade Nitrile
- Rotation: Clockwise
- Clearances: Standard
- Valve Type and Configuration: Plastic Hi-Temp Solid
- Pressure Range: 151 PSI to 250 PSI
- Body Material: Brass
- Nominal Speed: 1725 RPM
- Self Priming: 6' maximum lift
- Inlet Port: 1/2" NPT
- Outlet Port: 1/2" NPT
Features:
- Self Priming
- Maintenance Free
- Low Vibration and Pulsation Characteristics
Applications:
- Circulation
- Reverse Osmosis
- Booster
- Solar Applications
- Hydraulic Systems
- Desalination
