Procon 5 Series 105B215R31BC Clamp Style Stainless Steel Rotary Vane Pump - 215GPH
Brand:
Mfr. Model #:
105B215R31BC
KR Part #:
PPCB2606XHV
Weight:
2.50 lbs
Usually Ships in 3 Weeks
Stainless steel body rotary vane pump with a positive displacement design. This pump has clamp-on mounting, fluorocarbon seals, and 1/2" inlet and outlet ports. Performance details include a 215 GPH flow rate and 100 PSI maximum pressure.
Product Description
Stainless Steel Rotary Vane Pump

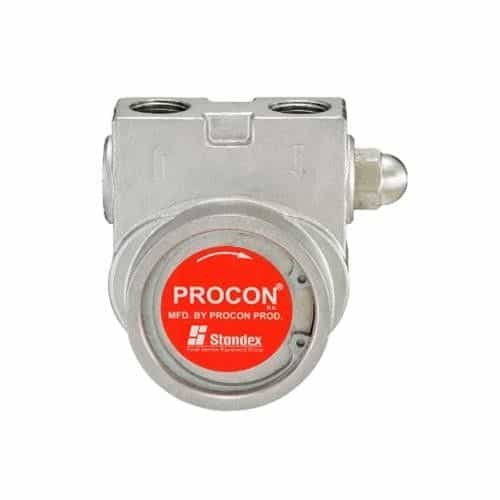

The Procon 105B215R31BC Pump is a stainless steel rotary vane pump from the Procon 5 Series. This positive displacement model pump is designed to operate virtually maintenance-free. It has 1/2" NPT inlet and discharge ports, a maximum flow rate of 215 GPH, and a pressure range from 60 to 100 PSI.
This Series 5 rotary vane pump has low-vibration operation and self-priming capabilities. It is ideal for R.O., water transfer and boosting applications. Features clamp style mounting.
Dimensions: 4.1" x 3.88" x 4.48"
Specifications:
- Non-food grade - 1.5% maximum lead
- Slotted with 1143 bronze coupling
- Fluorocarbon elastomer seals
- 215 GPH
- 303 stainless steel construction
- 1725 RPM nominal speed
- 60-100 PSI pressure range
- Clockwise rotation with slinger
- Standard clearances
- Plastic hi-temp solid valve type
- 1/2" NPT inlet and outlet
- Weight: 3.94 lbs.
Features:
- Self-priming
- Maintenance-free
- Low vibration and pulsation
Typical Applications:
- Water circulation
- Reverse osmosis
- Booster pumps
- Solar applications
- Hydraulic systems
- Desalination
