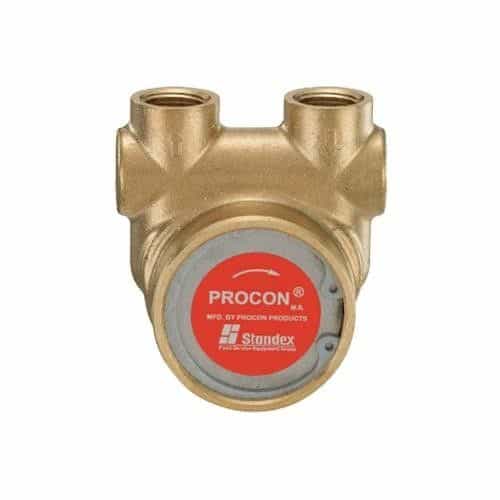

Procon 102A035R11BB Series 2 Brass 35 GPH Rotary Vane Pump - Clamp-On, 150 PSI, 3/8in. NPT
Brand:
Mfr. Model #:
102A035R11BB
KR Part #:
PPCO1505XLV
Weight:
4.00 lbs
Usually Ships in 3 Weeks
Brass body rotary vane pump with a positive displacement design. This brass pump has clamp-on mounting, fluorocarbon seals, and 3/8" inlet and outlet ports. Performance details include a 35 GPH flow rate and a 150 PSI maximum pressure rating.
Technical Specifications
Inlet Port: 3/8 inch
Max GPM: 35
Max PSI: 150
Product Description
Positive Displacement Rotary Vane Pump
The Procon 102A035R11BB Rotary Vane Pump is a brass positive displacement pump from the Procon Series 2 line of pumps. This rotary vane pump has low-vibration operation and self-priming capability. It is ideal for water transfer, boosting, and reverse osmosis applications. This brass pump has a 35 GPH flow rate, a max pressure of 150 PSI, and clamp-on mounting.
Procon Series 2 pumps have the same features as Series 1, only without the integral strainer.
Specifications:
- Brass construction
- Rotary vane, positive displacement design
- 3/8" inlet and outlet ports
- 35 GPH flow rate
- 1725 RPM nominal speed
- 100 to 150 PSI pressure range - 130 PSI default setting
- Clamp-on mount with .188" double flat drive
- Fluorocarbon type 21 elastomer seals
- Plastic hi-temp solid valves
- Standard clearances
- Clockwise rotation
- Non-food grade (1.5% maximum lead) - no agency approval
- Weight: 2.5 lbs.
Features:
- Self Priming
- Maintenance Free
- Low Vibration and Pulsation Characteristics
Applications:
- Water circulation
- Reverse osmosis
- Booster
- Solar applications
- Hydraulic systems
- Desalination
