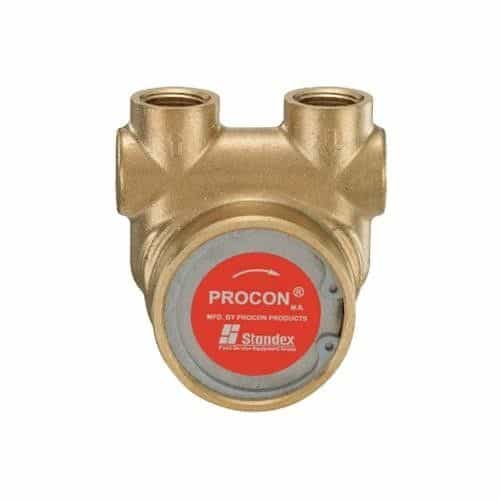

Brass Low Volume Fluid Pump

The Procon 102A015F11XX is a rotary vane style pump made from brass. This low vibration pump has a 15 GPH maximum flow rate, 3/8" inlet and outlet ports, and 250 PSI maximum discharge pressure. Procon Series 2 pumps are self-priming, designed to avoid metal-to-metal contact, and are almost entirely maintenance-free throughout their lives (other than cleaning the strainer).

Dimensions: 3.56" x 3.49" x 3.86"

Specifications:

• 15 GPH flow rate
• 250 PSI maximum discharge pressure
• 1725 RPM
• Clockwise rotation (view from nameplate end)
• Self priming (water) 6' maximum lift
• 3/8" NPT inlet and outlets
• Clamp-on mounting with .188" double flat drive
• FDA grade nitrile elastomer
• Standard clearance
• 303 stainless steel shaft
• No relief valve
• No setting

Possible Applications:

• Small car wash systems
• Welding
• Cold car circulation
• Reverse osmosis
• Pesticide systems
• Solar applications
