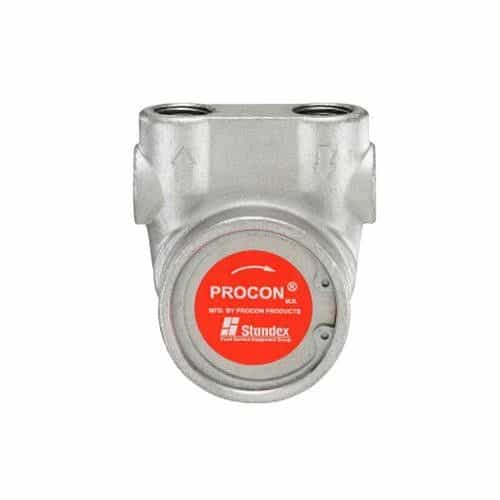

Procon 103A100R31BB Series 3 Rotary Vane Steel Pump - Clamp-On, 100 GPH, 150 PSI
Brand:
Mfr. Model #:
103A100R31BB
KR Part #:
PPCO1604XLV
Weight:
2.04 lbs
Availability:
5
Low Inventory Get It Today
Stainless steel rotary vane pump with 3/8" inlet and outlet ports. This pump has clamp-on style mounting. 100 GPH rated flow, clockwise rotation, 150 PSI maximum pressure.
Technical Specifications
RPM: 1725
Max GPM: 1.67
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Horsepower: .5
Max PSI: 150
Product Description
Clamp Rotary Vane Series 3 Pump
The Procon 103A100R31BB Rotary Vane Pump is part of the 3 Series and is made of stainless steel. Boasting all of the features you expect from Procon's rotary vane pumps, this version is great for fluids that can't be used with brass pumps. This model is clamp-on mounted, has 3/8" ports, and is usable up to 150 PSI.
Dimensions: 3.56" x 3.49" x 3.86"
Specifications:
- Stainless steel construction
- Clamp-on mounting with .188" double drive
- 100 GPH flow rate
- 100-150 PSI maximum pressure (130 PSI default setting)
- 1725 RPM nominal speed
- .25 to .50 typical horsepower requirement
- Clockwise rotation with slinger
- 6 ft. maximum lift self-priming (water)
- 3/8" inlet
- 3/8" outlet
- Fluorocarbon type 21 seals
- Standard clearances
- Plastic, high temperature solid valves
- Non-food grade
- Weight: 2.04 lbs.
Applications:
- Reverse osmosis
- Pesticide systems
- Solar applications
Features:
- Self-priming
- Low pulsation and vibration
- Maintenance-free
