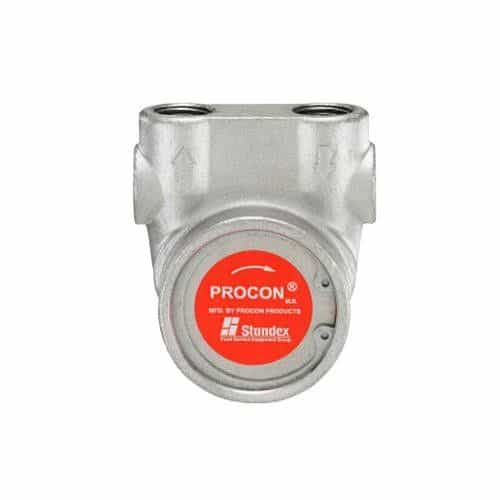

Clamp-Style Series 3 Rotary Vane Pump

The Procon 103A080F31XX Rotary Vane Pump is part of the 3 Series and is made of stainless steel. Boasting all of the features you expect from Procon's rotary vane pumps, this version is great for fluids that can't be used with brass pumps. This model is clamp-on mounted, has 3/8" ports, and is usable up to 250 PSI.

Dimensions: 3.56" x 3.49" x 3.86"

Specifications:

• Stainless steel construction

• Clamp-on mounting with .188" double drive

• 80 GPH flow rate

• 250 PSI maximum pressure (no default setting)

• 1725 RPM nominal speed

• .25 to .50 typical horsepower requirement

• Clockwise rotation with slinger

• 6 ft. maximum lift self-priming (water)

• 3/8" inlet

• 3/8" outlet

• FDA nitrile seals

• Standard clearances

• No relief valve

• Non-food grade

• Weight: 2.5 lbs.

Applications:

• Reverse osmosis

• Pesticide systems

• Solar applications

Features:

• Self-priming

• Low pulsation and vibration

• Maintenance-free
