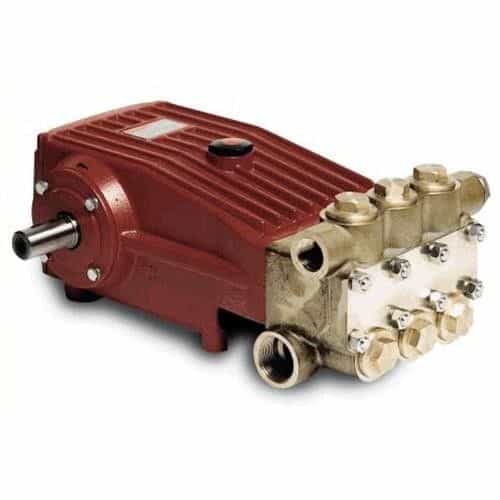

Giant LP122A Triplex Plunger Pump, 35.4 GPM, 1300 PSI
Brand:
Mfr. Model #:
LP122A
KR Part #:
PULP122
Weight:
144.00 lbs
Temporarily Unavailable
The Giant LP122A high pressure pump is a durable choice for reclaimed water pumping. Features spheroidal cast iron crankcase and forged crankshaft. Maximum continuous flow of 35.4 GPM, at up to 1300 PSI
Freight Only
Technical Specifications
RPM: 885
Max PSI: 2000
Max GPM: 40
Max Temperature: 140 degrees F
Crankcase Capacity: 116 oz
Stroke: 42 millimeter
Shaft Diameter: 35 millimeter
Inlet Port: 1 1/2 inch
Bore: 42 millimeter
Product Description
Triplex Ceramic Plunger Pump
The Giant LP122A reciprocating triplex pump features high-pressure capabilities, with a maximum intermittent discharge pressure of 2000 PSI and flows at a max rate of 40 GPM. Nitrile seals with fabric reinforcing for strong, watertight operation. Appropriate for reclaimed water applications.
Features:
- Spheroidal cast iron crankcase with sight glass and vented dipstick
- Forged, through-hardened, ground and polished crankshaft
- Bronze connecting rods; hardened stainless steel plunger bases
- Solid ceramic plungers
- Nitrile seals with fabric reinforcing
- Stainless steel valves and forged aluminum bronze manifold
- Use for reclaimed water
- Right hand shaft
Specifications:
- Volume (Continuous): 35.4 GPM
- Discharge Pressure (Continuous): 1300 PSI
- Maximum Inlet Pressure: 90 PSI
- Maximum Speed (Continuous): 800 RPM
- Maximum Temperature: 140° F
- Inlet Ports: (2) 1-1/2" NPT
- Discharge Ports: (2) 1" NPT
