SMC 5230190 9284F4M Inline Ball Bearing 928 Series Swivel - 1/4in. M X F

Brand:
Mfr. Model #:
5230190 9284F4M
KR Part #:
SW0120
Weight:
0.30 lbs
In Stock
MSRP
$48.61
Now Only!
$24.60
The 928 series swivel promotes a compact design for 1/4 NPT fluid hose and airline applications. Max operating pressure 1500 PSI.



Product Description

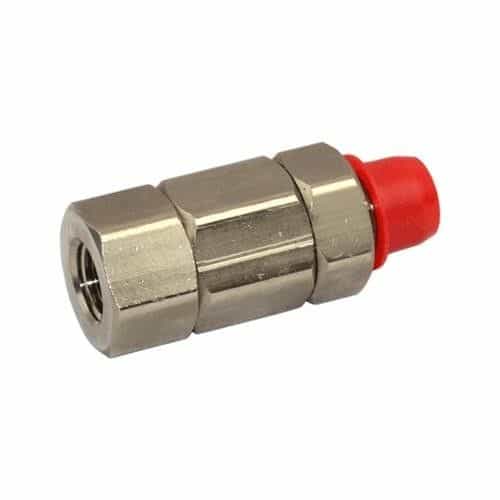

1/4" Male Inline Bearing Swivel

These inline ball bearing swivels are constructeds of electroless nickel plated brass. Cap ends are precision machined for heavy duty, leak proof service. Features a high pressure seal made of Teflon backed Buna-N. The bearing seal is vented between the high pressure seal.
Specifications:
  • Inlet: 1/4" MNPT
  • Outlet: 1/4" FNPT
  • Max Pressure: 1500 PSI
  • Max Temp: 180 degrees F
  • Buna N seals
  • Nickle-plated brass body
  • Glass-filled polypropylene sulfide thrust bearing
