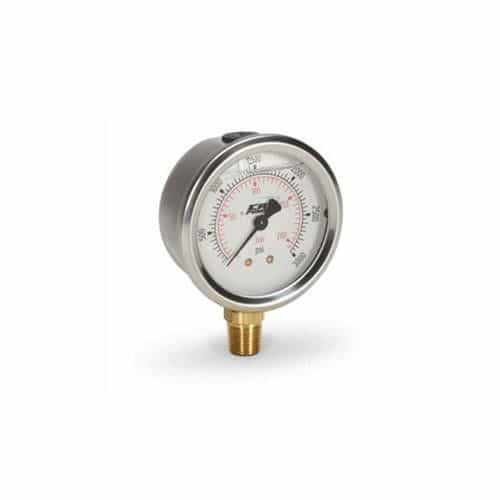

CAT Pumps 6088 Brass Body 0-3000PSI Pressure Gauge

Brand:
Mfr. Model #:
6088
KR Part #:
PU6088
Weight:
0.40 lbs
Availability:
6
Low Stock Warning
MSRP
$82.49
Now Only!
$53.68

Manuals

Monitor system pressure for early alerts to the need for maintenance should there be a loss of or fluctuation in pressure. Best performs when the system pressure is up to 75% of maximum gauge rating. Measures up to 3000 PSI, at temperatures up to 140°F.



Technical Specifications

Max GPM: 75
Max PSI: 3000
Inlet Port: 1/4 inch
Max Temperature: 140 degrees F

Product Description

Pressure Gauge 3000PSI CAT Pump

Brass-body 6088 pressure gauge is ready for industrial duty. Gauge should be installed directly onto the discharge head of the pump to read the full pressure at the pump and to monitor system performance as well. Excellent early indicator of potential maintenance needs.

Dimensions: 2.64 X 1.12 X 3.5"

  • Glycerine filled for consistent, accurate readings, shock and pulsation protection.
  • Hermetically sealed 304 stainless steel case eliminates corrosion risk and liquid or humidity within gauge.
  • Built-in snubber to reduce pressure fluctuations.
  • Install on pump discharge manifold to allow accurate monitoring of pump performance and enhance system safety.

Specifications

  • Max Pressure: 3000 PSI
  • Max Temperature: 140°F
  • Inlet Port: 1/4" NPT Male
