Giant LP301A Pump - 14.2 GPM, 4000 PSI, 1000 RPM
Brand:
Mfr. Model #:
LP301A
KR Part #:
PULP301A
Weight:
119.00 lbs
Usually Ships in 2 Weeks
Technical Specifications
RPM: 1000
Max Temperature: 140 degrees F
Crankcase Capacity: 118 ounce
Inlet Port: 1 1/4 inch
Max GPM: 14.2
Max PSI: 4000
Shaft Diameter: 35 millimeter
Stroke: 42 millimeter
Product Description
LP Series Pump

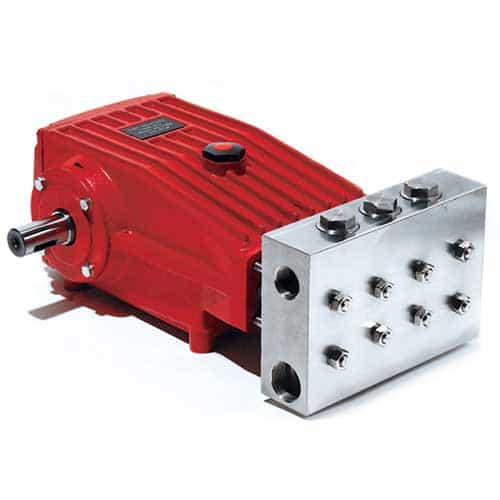

The LP301A model is a German-made, reciprocating, triplex plunger pump. It features a spheroidal cast iron crankcase with sight glass and a vented dipstick. It has a forged, through-hardened, ground and polished crankshaft. Other features include:
- Bronze connecting rods
- Stainless steel plunger bases
- Stainless steel manifold
- Solid ceramic oxide plungers
- Stainless steel valves
- Nitrile seals with fabric reinforcing
- Spheroidal cast iron gear end
Specifications:
- Continuous discharge pressure: 4000 psi
- Intermittent discharge pressure: 4000 psi
- Maximum inlet pressure: 145 psi
- Plunger diameter: 0.95"
- Crankshaft rotation: top of pulley towards manifold
- Crankshaft mounting: either side
