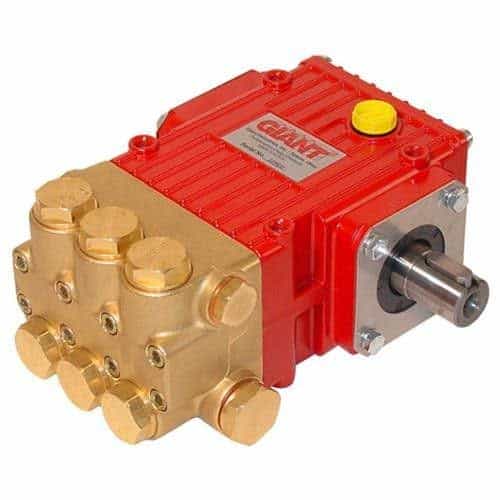

Giant Pumps P220 Positive Displacement Triplex Plunger Pump - 2000 PSI, 4.7 GPM, 1750 RPM
Brand:
Mfr. Model #:
P220R
KR Part #:
PUP220R
Weight:
15.00 lbs
Manuals
This innovative pump features reciprocating plungers, a forged brass manifold and a sight glass to view oil level, which is a huge benefit to see when maintenance may be necessary. This model flows at up to 4.7 GPM and a pressure level of 2000 PSI.
Technical Specifications
Max GPM: 4.7
Max PSI: 2000
RPM: 1750
Max Temperature: 160 degrees F
Shaft Diameter: 24 millimeter
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Crankcase Capacity: 7.5 ounce
Stroke: 14.1 millimeter
Product Description
Direct Drive Plunger Pump
This plunger pump has reciprocating plungers enabling direct or belt drive application. Sight glass built into the aluminum crankcase allowing for accurate reading of oil levels. Manifold is constructed with forged brass. Features a ground and polished crankshaft.
Specifications:
- Flow: 4.7 GPM
- Pressure (Continuous): 2000 PSI
- Pressure (Intermittent): 2500 PSI
- Crankshaft Speed: 1750 RPM
- Maximum Inlet Pressure: 145 PSI
- Maximum Temperature: 160 °F
- Plunger Diameter: 0.71"
- Stroke: 14.1 mm
- Crankshaft Diameter: 24 mm
- Crankshaft Rotation: Top of Pulley Towards Manifold
- Key Width: 0.31"
- Crankshaft Mounting: Either Side
- Inlet Ports: (2) 1/2in. BSP
- Discharge Ports: (2) 3/8in. BSP
- Crankcase Oil Capacity: 7.5 fl. Oz.
- Extended Crankcase Oil Capacity: 9.0 fl. Oz.
- Weight: 11.7 lbs.
- Volumetric Efficiency @ 1750 RPM: 0.94_
- Volumetric Efficiency @ 3450 RPM: 0.87_
- Volumetric Efficiency @ 1750 RPM: 0.86_
- Manifold: Special Brass
- Plungers: Solid Ceramic Oxide
- Valves: High Grade Stainless Steel
- Seals: Nitrile With Fabric Reinforcing
- Gear end: Aluminum
