Short Back Car Wash Plunger Pump - Right Shaft

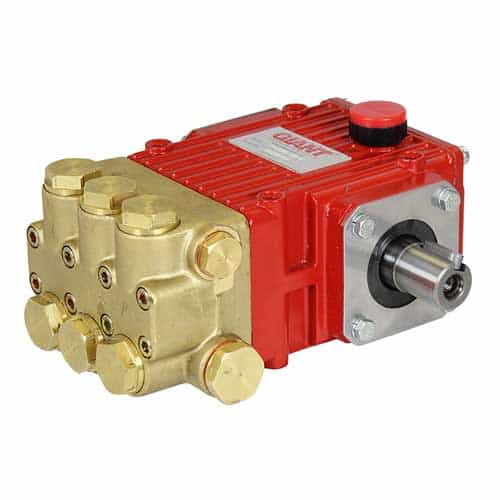

The Giant Pumps P316RX is an American-made positive displacement pump for direct or belt driven applications. The shaft is mounted on the right and the pump has a shortened backend. This triplex plunger high pressure pump has reciprocating plungers and an aluminum crankcase with sight glass and a vented dipstick. Choose quality Giant products for your car washing systems, pressure washing business, and other high pressure applications.

1750 RPM Specifications:

• Max Flow: 4.7 GPM; 17.8 L/min

• Nominal Pressure: 2500 PSI; 170 bar

• Power Consumption (Nominal): 8.1 hp; 6.0 kW

• Intermittent Pressure: 2750 PSI; 190 bar

• Power Consumption (Intermittent): 8.9 hp; 6.6 kW

Common Specifications:

• Max Temperature: 160 °F; 70°C

• Plunger Diameter: 0.71"; 18mm

• Stroke: 0.56"; 14.1 mm

• Inlet Pressure     145 PSI; 10 bar

• Crankshaft Diameter: 0.94"; 24 mm

• Oil Capacity (short): 14.2 fluid ounces; 0.42 L

• Oil Capacity (extended): 17.0 fluid ounces; 0.5 L

• Weight: 16 lbs; 7.3 kg

• Inlet Ports:(2) 1/2" BSP

• Discharge Ports: (2) 3/8" BSP

• Shaft Rotation: Top of Pulley Towards Manifold

• Shaft Mounting: Right

Component Materials:

• Forged brass manifold

• Solid ceramic oxide plungers

• High grade stainless steel valves

• Nitrile seals with fabric reinforcement

• Aluminum die-cast gear end
