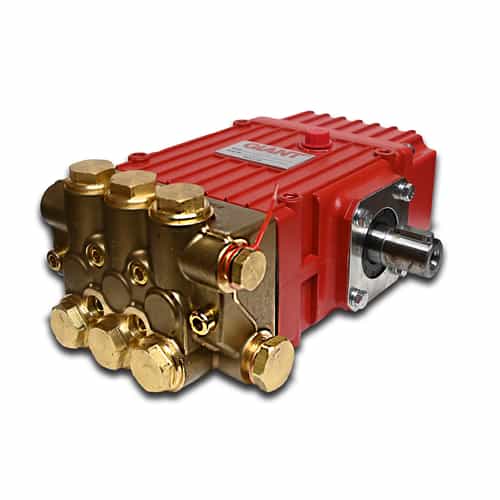

Giant Pumps P317R Triplex Plunger Pump, Right Shaft, 3.5 GPM, 3350 PSI, 1750 RPM
Brand:
Mfr. Model #:
P317R
KR Part #:
PUP317R
Weight:
21.80 lbs
Availability:
3
Low Inventory Get It Today
Used in a variety of applications, these hard working pumps help get the job done. Right side drive shaft for traditional pump rooms. Up to 3.7 GPM max flow, at pressures up to 3000 PSI.
Technical Specifications
Max GPM: 3.5
Max PSI: 3350
Max Temperature: 160 degrees F
RPM: 1750
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Bore: 18 millimeter
Stroke: 10.6 millimeter
Shaft Diameter: 24 millimeter
Crankcase Capacity: 14.2 oz
Product Description
Right Mounted Plunger Pump
The Giant Pumps P317R plunger pump has a right-side mounted drive shaft. This high-quality positive displacement plunger pump has a maximum flow rate of 3.7 GPM at 1750 RPM. Giant positive displacement pumps are reliable options for high-pressure water systems at car washes, vehicle dealers, and auto detailing shops.
Specifications:
- Flow: 3.5 GPM
- Pressure: 3045 PSI
- Pump Speed: 1750 RPM
- Maximum Inlet Pressure: 145 PSI
- Maximum Temperature: 160 °F
- Plunger Diameter: 18 mm
- Stroke: 14.6 mm
- Crankshaft Diameter: 24 mm
- Crankshaft Rotation: Top of pulley towards manifold
- Crankshaft Mounting: Left
- Inlet Ports: (2) 1/2" BSP
- Discharge Ports: (2) 3/8" BSP
- Crankcase Oil Capacity: 14.2 fluid ounces
- Extended Crankcase Oil Capacity: 17.0 fluid ounces
- Weight: 16 lbs.
Key Component Material:
- Manifold: Special brass
- Plungers: Solid ceramic oxide
- Valves: High grade stainless steel
- Seals: Nitrile with fabric reinforcing
- Gear End: Aluminum
