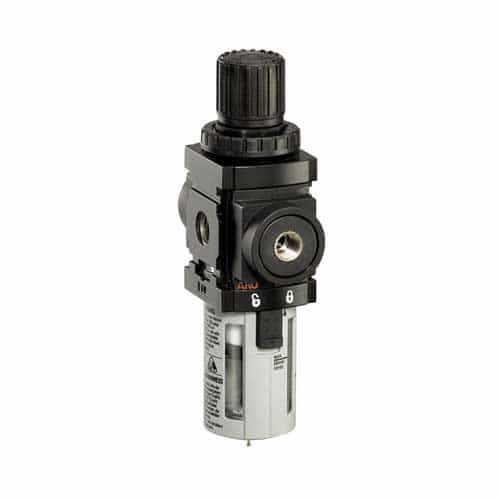

ARO P39124-100 Combination Air Filter and Regulator - 1/4 in. NPT, 140 PSI
Brand:
Mfr. Model #:
P39124-100
KR Part #:
REA129121
Weight:
0.65 lbs
GTIN:
663023054438
In Stock
Polycarbonate bowl compressed air filter and regulator device with 1/4" NPT connections. 47 CFM, 140 PSI, 5 Micron.
Technical Specifications
Max PSI: 140
Max Temperature: 125 degrees F
Inlet Port: 1/4 inch
Product Description
1/4" NPT Piggyback Filter and Regulator
The ARO P39124-100 is a piggyback filter and regulator for compressed air system treatment. This filtering device removes unwanted materials like water, oil, and solid particles while maintaining consistent air pressure. Has a maximum pressure rating of 140 PSI and 1/4" NPT connection ports.
Dimensions: 6.20" Height x 2.91" Width
- Filter Rating: 5 micron
- Connection Size: 1/4" NPT
- Maximum Incoming Pressure: 140 PSI
- Maximum Flow: 47 CFM
- Adjustment Range: 0-140 PSI
- Bowl Material: Polycarbonate
- Bowl Size: .5 oz.
- Maximum Temperature: 125° Fahrenheit
- Standard adjustment knob
- Manual drain type
- Includes panel nut
For Removal Of:
- Oil
- Particles
- Water
