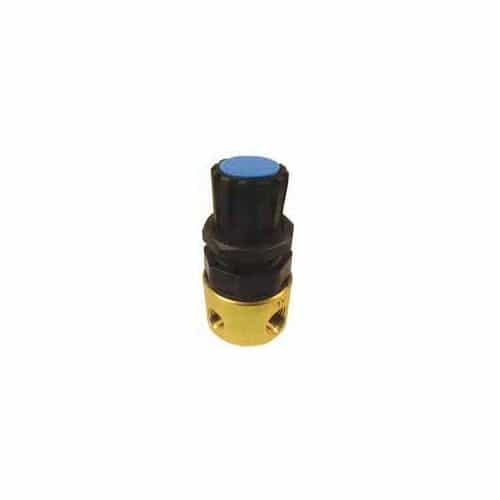

ARO B27112-000 Mini Relieving Brass Regulator - 1/8in.
Brand:
Mfr. Model #:
B27112-000
KR Part #:
REA27120
Weight:
1.00 lbs
Usually Ships in 2 Weeks
A brass mini regulator for accurate, low-cost control of air and water flow in the most rugged and demanding applications. The brass body with an internal stainless steel valve spring provides corrosion protection against regulated fluids.
Technical Specifications
Inlet Port: 1/8 inch
Min PSI: 0
Max PSI: 150
Max Temperature: 150 degrees F
Max GPM: 1.75
CFM: 13
Product Description
1/8" Mini Brass Regulator
ARO Miniature Series Regulators are the ideal choice where a small, compact unit is required to provide accurate control of either air or water flow. A stainless steel valve spring is the only metallic part to come in contact with the regulated medium. A non-rising, locking adjustment knob maintains the desired setting. This regulator is also versatile as the panel mounting nut is part of the regulator and is included at no additional cost. Industry standard 1-3/16” - 18 threaded spring housing enables easy panel mounting (max. panel thickness is 3/16”).Specifications:
- Pressure Range: 0-150 PSI
- Max Inlet Pressure: 250 PSI
- Max Adjusted Pressure: 125 PSI
- Operating Temp: 0-150 degrees F
- Water Flow: 1.75 GPM
- Ports: 1/8"
- Air Flow: 13 SCFM
