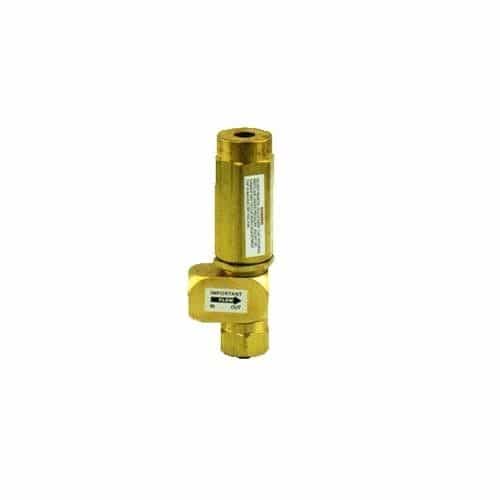

SMC 5551090 Balanced Pressure Regulator with Buna-N Seals - 500 PSI, 10 GPM
Brand:
Mfr. Model #:
5551090
KR Part #:
RE55590L
Weight:
0.74 lbs
Brass body balanced pressure regulator with Buna rubber seals and a blue spring designed for low pressures up to 500 PSI. Part of the SMC 555 Series designed for car wash and pressure wash applications where weep guns are used or a bypass returns to a supply tank. 10 GPM, 3/8" FNPT inlet and bypass, 180° F.
Technical Specifications
Max PSI: 500
Min PSI: 50
Max GPM: 10
Inlet Port: 3/8 inch
Max Temperature: 180 degrees F
Product Description
500 PSI Regulator
The SMC 5551090 Balanced Pressure Regulator is part of the 555 Series. These off-line regulators are designed for car wash and pressure wash applications where a weep gun is used or a bypass can be returned to the supply tank. This version of the 555 Series Regulator has a blue low-pressure spring and Buna-N seals.
- 10 GPM
- 500 PSI maximum pressure - Blue spring
- 3/8" FPT inlet port
- 3/8" FPT bypass port
- 180° Fahrenheit maximum operating temperature
- Brass body, ends, and adjustment cap
- L-style
- Buna-N piston seals (replacement seals available: 5550490)
