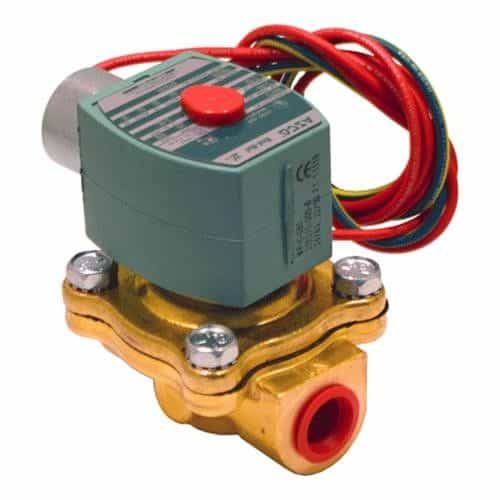

Brass Solenoid Valve

This piloted solenoid valve is equipped with a 2-way function and a normally closed valve configuration. Accepts 3/8-inch piping with a brass constructed body. This valve tolerates operating temperatures up to 180 degrees Fahrenheit. Handles air-inert gas, light oil, water in car wash applications.

Specifications:

• Pipe Size: 3/8"

• Type: 2 Way

• Mode: Normally Closed

• Body Material: Brass

• Diaphragm: Pilot Operated

• Carton Notes: RPLS 8210D1 INC PRFX FT, GS, R,

• Coil Class: Class F

• Coil Number: 238210-005-D

• Coil Voltage: 24 VAC/60 HZ

• Cv: 3

• Holding Current (VA): 16

• Housing Type: Nema 4X

• Inrush Current (VA): 40

• Lead Length: 18

• Media Handled: Air-Inert Gas, Light Oil, Water

• Max (Air): 200 PSI

• Max (Lt Oil): 135 PSI

• Max (Water): 150 PSI

• Min Differential (PSI): 5 PSI

• Max Ambient Temperature: 125° F

• Max Fluid Temperature: 180° F

• Min Ambient Temperature: 32° F

• Mounting Direction: Any

• Orifice Size: 5/8"

• Rebuild Kit Number: 302273

• Seat Material: NBR

• Series: 8210

• Shading Ring: Copper

• Watt Rating: 6.1
