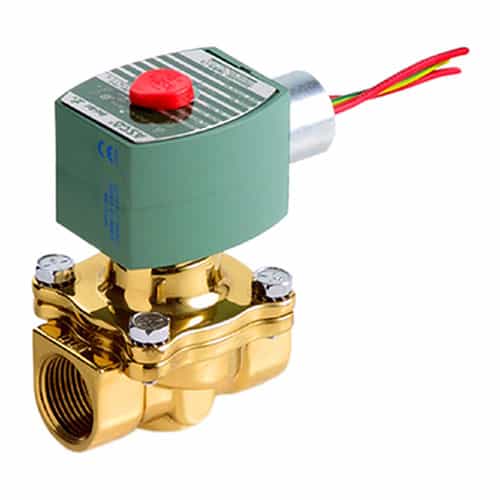

Normally Open Solenoid Valve

This solenoid valve is safe to use liquids, corrosives, and air/inert gases. Solenoid fits 1/2-inch piping with a body that is constructed with brass. This valve tolerates fluid temperatures up to 150 degrees Fahrenheit. Applications include car washes, air compressors, pumps, laundry equipment, and industrial water control.

Specifications:

• Pipe Size: 1/2"

• Type: 2 Way

• Mode: Normally Open

• Body Material: Brass

• Carton Notes: RPLS 8210C34 PRFX FT,GS,R,T

• Coil Class: F

• Coil Number: 238710-006-D

• Coil Voltage: 24/DC

• Cv: 4

• Housing Type: Nema 4X

• Lead Length: 18

• Max (Air): 125 PSI

• Max (Lt Oil): 125 PSI

• Max (Water): 125 PSI

• Max Ambient Temperature: 104

• Max Fluid Temperature: 150

• Min Ambient Temperature: 32

• Min Differential (PSI): 0

• Mounting Direction: Any

• Orifice Size: 5/8"

• Rebuild Kit Number: 302449

• Seat Material: NBR

• Series: 8210

• Shading Ring: Copper

• Watt Rating: 11.6

• Item Weight: 3.5 lbs.


Application:

• Air Compressors

• Car Wash

• Industrial Water Control

• Laundry Equipment

• Pumps
