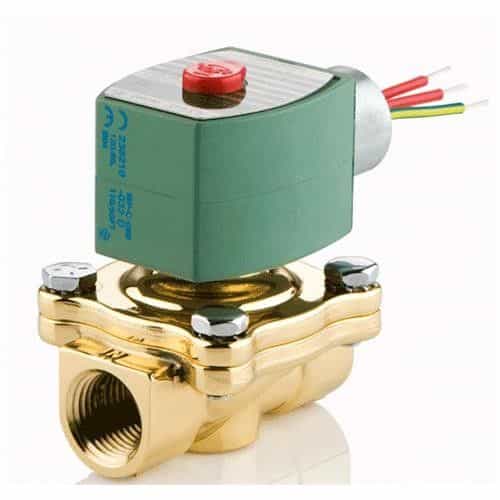

Brass Solenoid Valve

This piloted solenoid valve is equipped with a 2-way function and a normally closed valve configuration. Accepts 1/2-inch piping with a brass constructed body. This valve tolerates operating temperatures up to 180 degrees Fahrenheit. Handles water, air, light oil, non-corrosive media in car wash applications.

Specifications:

• Air Pressure: 200 PSI

• Actuation: Piloted Solenoid

• Orifice Diameter: 0.62 Inches

• Number of Solenoids: 1

• Supply Voltage: 24 VAC

• Power Consumption: 6.1 Watts

• Valve Functionality: 2-Way, 2-Position, Normally Closed

• Flow Coefficient (cV): 4

• Compatible Fluid Type: Water, Air, Light Oil, Non-Corrosive Media

• Housing Material: Brass

• Operating Temperature: 180 Degrees F

• Pipe Size: 1/2 in

• Operating Pressure Rating (Air):

  • Min: 5 PSI

  • Max: 200 PSI

• Operating Pressure Rating (Water):

  • Min: 5 PSI

  • Max: 150 PSI

• Operating Pressure Rating (Lt Oil):

  • Min: 5 PSI

  • Max: 135 PSI

• Approvals: CE; UL; CSA

• RoHS: No

• H x W x D: 4 in x 3.35 in x 3.05 in
