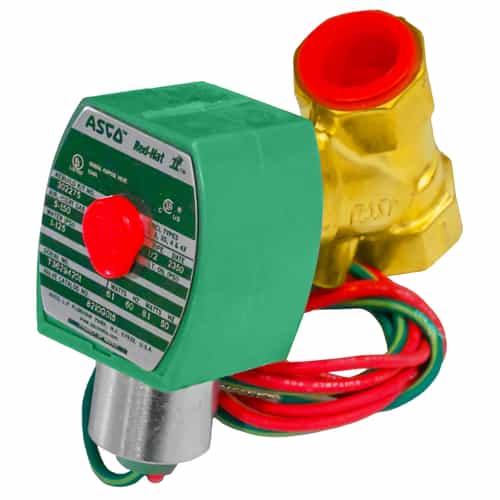

Asco 8210G002 120/60 Brass 2-Way Normally Closed Solenoid Valve - 1/2in., 120 VAC, 200 PSI
Brand:
Mfr. Model #:
8210G002 120/60
KR Part #:
SA209
Weight:
1.70 lbs
Out of stock - Pre-Order Now!
Normally closed piloted solenoid valve with a brass construction. Fits 1/2 inch-inch piping. Compatible with 120 VAC electrical connections.
Technical Specifications
Max PSI: 200
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Orifice: 5/8 inch
Max Temperature: 180 degrees F
Min PSI: 5
Min Temperature: 32 degrees F
Voltage AC: 120
Product Description
Brass Solenoid Valve
This piloted solenoid valve is equipped with a 2-way function and a normally closed valve configuration. The brass constructed body is equipped with 1/2-inch ports for piping connections. This valve tolerates operating temperatures up to 180 degrees Fahrenheit. Handles general service applications in car washes and other industries.
Specifications:
-
Pipe Size: 1/2"
-
Type: 2 Way
-
Mode: Normally Closed
-
Body Material: Brass
-
Carton Notes: RPLS 8210D2 INC PRFX FT,GS,R,
-
Coil Class: Class F
-
Coil Number: 238210-032-D
-
Coil Voltage: 120/60 110/50
-
Cv: 4
-
Holding Current (VA): 16
-
Housing Type: Nema 4X
-
Inrush Current (VA): 40
-
Lead Length: 18
-
Max (Air): 200
-
Max (Lt Oil): 135
-
Max (Water): 150
-
Max Ambient Temperature: 125
-
Max Fluid Temperature: 180
-
Min Ambient Temperature: 32
-
Min Differential (PSI): 5
-
Mounting Direction: Any
-
Orifice Size: 5/8"
-
Rebuild Kit Number: 302273
-
Seat Material: NBR
-
Series: 8210
-
Shading Ring: Copper
-
Watt Rating: 6.1
- Item Weight: 2.25 lbs per EA
