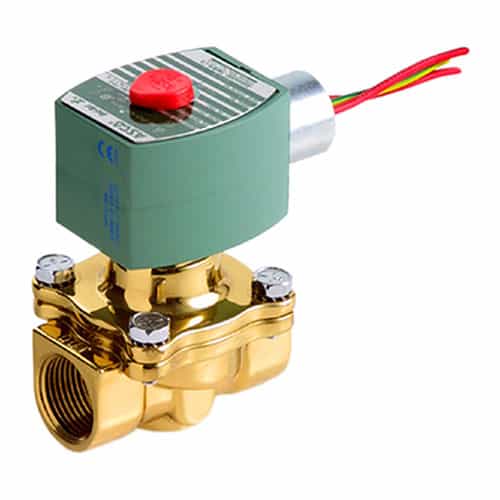

Asco 8210G035 120/60 Brass Normally Open 2-Way Solenoid Valve - 3/4 Inch, 150 PSI
Brand:
Mfr. Model #:
8210G035 120/60
KR Part #:
SA306
Weight:
2.00 lbs
Usually Ships in 2 Weeks
Normally open solenoid valve with a brass constructed body. Accepts 3/4-inch NPTF pipe size. Handles corrosive chemicals.
Technical Specifications
Max PSI: 150
Voltage AC: 120
Max Temperature: 180 degrees F
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Product Description
Normally Open Solenoid Valve
This solenoid valve is safe to use liquids, corrosives, and air/inert gases. Solenoid fits 3/4-inch piping with a body that is constructed with brass. This valve tolerates fluid temperatures up to 180 degrees Fahrenheit. Applications include car washes, air compressors, pumps, laundry equipment, and industrial water control.
Specifications:
- Valve Ways and Positions: 2-Way/2-Position
- Valve Configuration: Normally Open
- Media - Valves: Air, Inert Gases, Light Oil, Water
- Pipe Size - Valves: 3/4 in
- Min. Operating Pressure Differential: 0 PSI
- Max. Operating Pressure Differential Air/Inert Gas: 150 PSI
- Max. Operating Pressure Differential Light Oil: 125 PSI
- Max. Operating Pressure Differential Water: 150 PSI
- Environmental Rating - Valves: Indoor, Outdoor
- Voltage: 120V AC
- Coefficient of Volume: 5.5
- Body Material - Valves: Brass
- Coil Insulation: Class F
- Seal Material - Valves: NBR
- Orifice Diameter: 3/4 in
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- IP Rating: 66
- Max. Fluid Temperature: 180 Degrees F
- Hz: 60
- Watts: 10.1 W
- Coil Enclosure: Watertight No Junction Box
- Electrical Connections: 1/2 in Conduit w/18 in Leads
- Overall Length: 2 13/16 in
- Overall Width: 2 7/16 in
- Overall Height: 4 5/8 in
- Center Line Pipe Center Size: 3 15/16 in
Application:
- Air Compressors
- Car Wash
- Industrial Water Control
- Laundry Equipment
- Pumps
