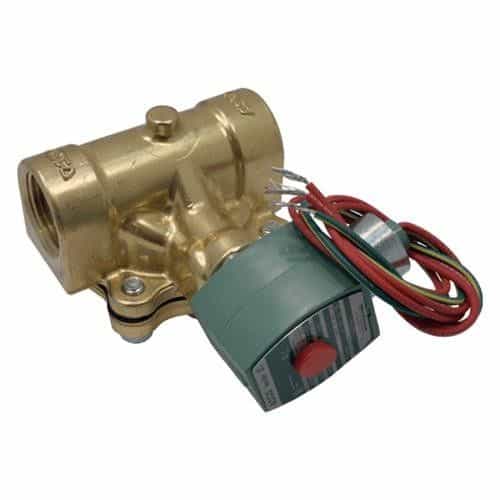

Asco 8210G004 24/60 Brass Normally Closed 2-Way Solenoid Valve - 1 Inch, 150 PSI
Brand:
Mfr. Model #:
8210G004 24/60
KR Part #:
SA403
Weight:
4.53 lbs
Availability:
1
Low Inventory Get It Today
Normally closed solenoid valve with a brass constructed body. Accepts 1-inch pipe size. Handles corrosive chemicals.
Technical Specifications
Max PSI: 150
Voltage AC: 24/60
Max Temperature: 180 degrees F
Inlet Port: 1 inch
Outlet Port: 1 inch
Product Description
Normally Closed Solenoid Valve
This solenoid valve is safe to use water, air, light oil, non-corrosive media. Solenoid fits 1-inch piping with a body that is constructed with brass. This valve tolerates fluid temperatures up to 180 degrees Fahrenheit. Applications include car washes, air compressors, pumps, laundry equipment, and industrial water control.
Specifications:
- Size: 1 In
- Manufacturer: ASCO
- Order Code: 20089
- Mfg. Product Number: 8210G004AC24/60D
- Orifice Diameter: 1 In
- Body Design: 2-Way
- Operation: Normally Closed
- Voltage: 24/60 AC
- Valve Service: General Service
- Series: 8210
- Max Fluid Temp (degrees F): 180°F
- Ambient Temp. Range: 32 to 125°F
- Cv: 13
- Min. OPD: 5 PSI
- Max OPD Air: 150 PSI
- Max OPD Water: 150 PSI
- Max OPD Lt. Oil: 100 PSI
- Coil Wattage: 6.1
- Electrical Connection: 1/2" Conduit w/ 18" Leads
- Solenoid Enclosure: Watertight
- Kit: 302280
- Coil: 238210-005-D*
- Construction: Pilot Operated
- Seat Material: NBR
- Compatible Fluid Type: Water; Air; Light Oil; Non-Corrosive Media
