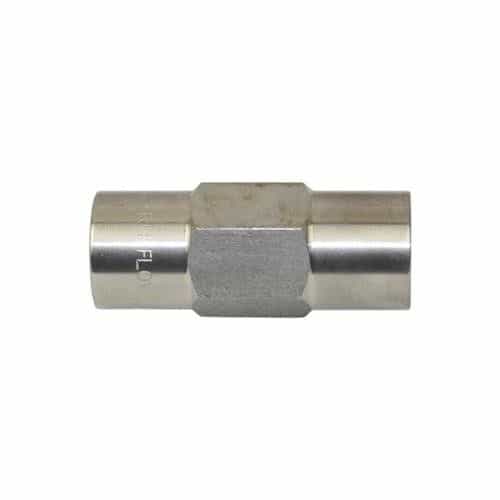

Fluid Controls CV-600 Stainless Steel Check Valve - 3/8in. F x F, 3000 PSI
Brand:
Mfr. Model #:
CV-600
KR Part #:
CV0041
Weight:
0.17 lbs
In Stock
Stainless steel body check valve with a Viton O-ring. 3/8" x 3/8" female ports. 3000 PSI maximum pressure.
Technical Specifications
Inlet Port: 3/8 inch
Max GPM: 8
Max Temperature: 170 degrees F
Max PSI: 3000
Product Description
3/8" F x 3/8" F Check Valve with Viton Seal
The Fluid Controls CV-600 check valve allows you to keep water and fluids flowing in a single direction within your high-pressure system. This one-way valve has 3/8" female ports, is rated for 8 GPM, and has a maximum pressure tolerance of 3000 PSI. Stainless steel body with Viton o-ring.
Specifications:
- Female 3/8" x 3/8" ports
- 8 GPM flow rate
- 3000 PSI maximum pressure
- 10 PSI open pressure
- 170 Fahrenheit maximum temperature
- Viton O-ring
- Stainless steel construction
Features:
- Leak-proof operation
- Valve is rebuildable
- Unique V-type seat and floating piston guide provides a continuous wiping.
