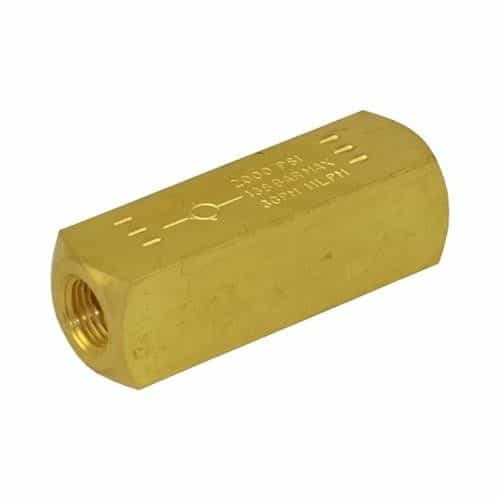

Parker C200B In-Line General Purpose Brass Check Valve - C Series, 2000 PSI, 3 GPM, 1/8 In NPT
Brand:
Mfr. Model #:
C200B
KR Part #:
CV0005
Weight:
0.19 lbs
In Stock
A brass C-Series check valve featuring a 1/8 inch NPT female ports. These one-way check valves are used in hydraulic and pneumatic applications in the mobile & industrial markets. Handles temperatures up to a maximum of 250 °F.
Technical Specifications
Max Temperature: 250 degrees F
Max PSI: 2000
Inlet Port: 1/8 inch
Outlet Port: 1/8 inch
Max GPM: 3
Product Description
1/8 Inch Colorflow Check Valve
A one-way check valve allowing the free flow of fluids in one direction with a reliable shut-off in the opposite direction. When pressure reaches the cracking level of 5 PSI, the valve will open and will close when the pressure falls under the cracking level, the valve closes. Valve is manufactured with brass for corrosion resistance. Delivers a maximum flow rate of 3 GPM and withstands a maximum pressure of 2000 PSI.Specifications:
- Port Size: 1/8" NPTF
- Cracking Pressure (PSI): 5
- Valve Body Material: Brass
- Maximum Flow Rate (GPM): 3
- Seal Material: Nitrile
- Maximum Operating Pressure: 2000 PSI
- Maximum Operating Temperature: 250 °F, 121 °C
- Minimum Operating Temperature: -40 °F, -40 °C
- Mounting Type: In-line
- Brand: Colorflow
- Media: Hydraulic, Water, Air
