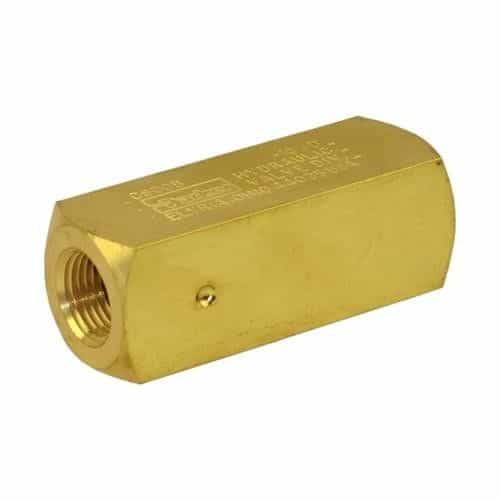

Parker C800B In-Line General Purpose Brass Check Valve - C Series, 2000 PSI, 15 GPM, 1/2 In NPT
Brand:
Mfr. Model #:
C800B
KR Part #:
CV0047
Weight:
1.22 lbs
In Stock
A brass C-Series check valve featuring a 1/2 inch NPT female ports. These one-way check valves are used in hydraulic and pneumatic applications in the mobile & industrial markets. Handles temperatures up to a maximum of 250 °F.
Technical Specifications
Max GPM: 15
Max PSI: 2000
Max Temperature: 250 degrees F
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
C800B Colorflow Check Valve - 1/2 in.
The Parker C600B check valve permits free flow in one direction and shut-off in the reverse direction. This in-line, one-way check valve is used in spot free rinse and hydraulic and pneumatic applications in mobile and industrial markets.
Specifications:
- 1/2" port size
- Brass valve body
- Cracking pressure: 5 PSI
- Nitrile seal
- Soft seat poppet for low leakage
- Maximum flow rate: 15 GPM
- Female x female connection
- Maximum operating pressure: 2000 PSI
Applications:
- Accumulator circuits
- Tank line backpressure
- Power units
- High low pump circuits
