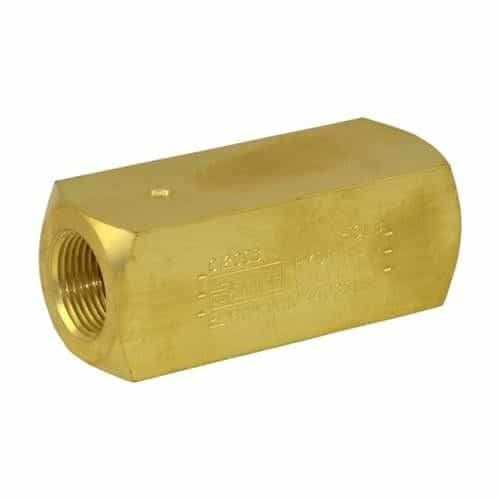

Parker C1200B In-Line General Purpose Brass Check Valve - C Series, 2000 PSI, 25 GPM, 3/4 In NPT
Brand:
Mfr. Model #:
C1200B
KR Part #:
CV0048
Weight:
1.92 lbs
In Stock
A C-Series check valve featuring a 3/4 Inch NPT female ports. Controls the flow of liquid with a metal style poppet. Handles temperatures up to a maximum of 250 °F.
Technical Specifications
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Max PSI: 2000
Max GPM: 25
Max Temperature: 250 degrees F
Min Temperature: -40 degrees F
Product Description
Colorflow Check Valve - 3/4 Inch
A one-way check valve allowing the free flow of fluids in one direction with a reliable shut-off in the opposite direction. When pressure reaches the cracking level of 5 PSI, the valve will open and will close when the pressure falls under the cracking level, the valve closes. Valve is manufactured with brass for corrosion resistance. Delivers a maximum flow rate of 25 GPM and withstands a maximum pressure of 2000 PSI.
Specifications:
- Port Size: 3/4
- Cracking Pressure (PSI): 5
- Thread Type: NPT
- Valve Body Material: Brass
- Poppet Style: Soft Seat
- Maximum Flow Rate (GPM): 25
- Connection Type: Female - Female
- Seal Material: Nitrile
- Maximum Flow Rate: 95 L/min
- Maximum Operating Pressure: 2000 PSI
- Maximum Operating Temperature: 250 °F, 121 °C
- Minimum Operating Temperature: -40 °F, -40 °C
- Mounting Type: In-line
- Brand: Colorflow
- Media: Hydraulic, Water, Air
Markets:
- Power Gen
- Machine Tools
- Factory automation
- Vehicle Assembly Facilities
- Molding
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Oil & Gas
- Machine tools
- Material Handling
- Mining
- Marine
Applications:
- Accumulator circuits
- Tank line backpressure
- Power units
- Tank line backpressure
- High low pump circuits
