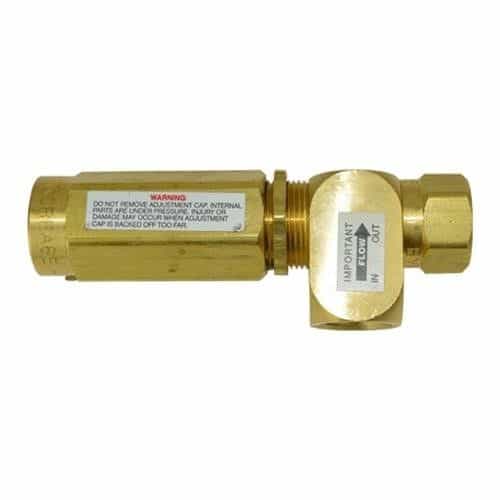

SMC 5550090 Balanced Pressure Regulator with Buna-N Seals - 2000 PSI, 7 GPM
Brand:
Mfr. Model #:
5550090
KR Part #:
RE55590
Weight:
0.79 lbs
Brass body balanced pressure regulator with Buna rubber seals and a gold spring designed for high pressures up to 2000 PSI. Part of the SMC 555 Series designed for car wash and pressure wash applications where weep guns are used or a bypass returns to a supply tank. 7 GPM, 3/8" FNPT inlet and bypass, 180° F.
Technical Specifications
Max PSI: 2000
Max GPM: 7
Inlet Port: 3/8 inch
Min PSI: 200
Max Temperature: 180 degrees F
Product Description
2000 PSI Regulator
The SMC 5550090 Balanced Pressure Regulator is part of the 555 Series. These off-line regulators are designed for car wash and pressure wash applications where a weep gun is used or a bypass can be returned to the supply tank. This version of the 555 Series Regulator has a gold high-pressure spring and Buna-N seals.
- 7 GPM
- 2000 PSI maximum pressure - Gold spring
- 3/8" FPT inlet port
- 3/8" FPT bypass port
- 180° Fahrenheit maximum operating temperature
- Brass body, ends, and adjustment cap
- L-style
- Buna-N piston seals (replacement seals available: 5550490)
