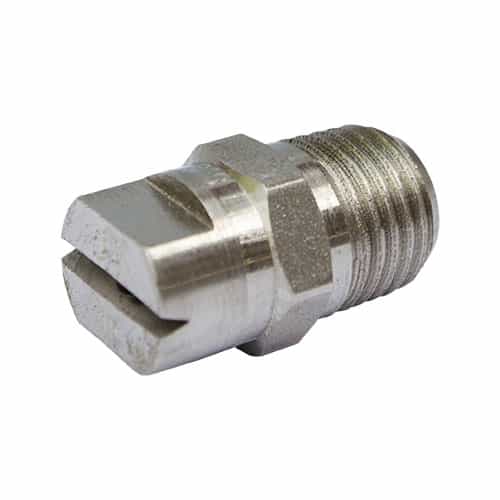

Spraying Systems H1/4U-SS1570 VeeJet Flat Pattern Nozzle - 1/4 Inch, 500 PSI, 2.5 - 25 GPM
Brand:
Mfr. Model #:
H1/4U-SS1570
KR Part #:
SN1570USS4
Weight:
0.01 lbs
In Stock
This VeeJet nozzle provides a flat spray pattern with a tapered edge. Made with 303 stainless steel and a 1/4 inch male NPT inlet. Tolerates flow rates from 2.5 to 25 GPM.
Technical Specifications
Inlet Port: 1/4 inch
Max PSI: 500
Min PSI: 5
Min GPM: 2.5
Max GPM: 25
Product Description
303 Stainless Steel Spray Nozzle
The Spraying Systems H1/4U-SS1570 is a VeeJet Nozzle with designed with an orifice that produces a flat fan spray pattern with a tapered-edge which ensures even coverage when multiple nozzles are used in a series. The inlet connection for this nozzle measures 1/4" with male NPT threading. Nozzle is constructed with 303 stainless steel for superior corrosion resistance and strength. It handles a maximum flow rate of 25 GPM and pressure of 500 PSI. Spray angle varies depending on the pressure of your fluid stream.Specifications:
- Inlet Connection Gender: Male
- Inlet Connection Size: 1/4" Male NPT
- Liquid Flow Rate Range: 2.5 - 25 GPM
- Liquid Pressure Range: 5 - 500 PSI
- Relative Drop Size Range: 500 - 5,000 µm
- Spray Pattern: Flat Fan
- Spray Angle at Rated Pressure: 11° at 20 PSI, 15° at 40 PSI, 18° at 80 PSI, 21° at 200 PSI
- Orifice: 0.203"
