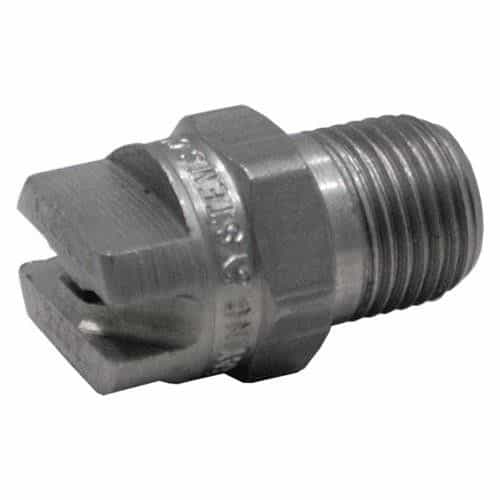

25 Degree Spray Angle Flat WashJet Nozzle

The Spraying Systems 1/8IMEG-2503 is a high-impact WashJet IMEG nozzle with a 25 degree spray angle at the rated pressure of 40 PSI. Hardened stainless steel construction provides increased strength and superior corrosion resistance. The inlet connection measures 1/8" Male NPT. Engineered to handle a maximum pressure of 4000 PSI and a flow rate of 3 GPM.

Specifications:

• Capacity Size: 3
• Inlet Connection Gender: Male
• Inlet Connection Size: 1/8 in
• Inlet Connection Thread Type: NPT
• Inlet Connection Type: Threaded (Male NPT)Threaded (Male NPT)
• Liquid Flow Rate at Rated Pressure: 0.3 gpm
• Material Composition: Hardened Stainless Steel
• Model: IMEG
• Product Type: Nozzle
• Spray Angle at Rated Pressure: 25°
• Tip Type: IMEG
• Has Guide Vane: Yes
• Design Feature: Has guide vane: Drop Sizes
• Relative Drop Size Group: 500 - 1,000 µm (Moderate Rain)

Performance

• Spray Angle: 25° at 40 psi
• Spray Angle Range: 25 - 25°
• Liquid Flow Rate: 0.3 gpm at 40 psi, 0.82 gpm at 300 psi, 1.1 gpm at 500 psi, 1.3 gpm at 750 psi, 1.5 gpm at 1000 psi, 1.8 gpm at 1500 psi, 2.1 gpm at 2000 psi, 2.4 gpm at 2500 psi, 2.6 gpm at 3000 psi, 2.8 gpm at 3500 psi, 3 gpm at 4000 psi

Physical

• Flats: 0.313 in

Product Category

• Brand: WashJet
• Nozzle Body Or Tip: Nozzle
• Spray Angle Catalog Code: Standard

Standard Feature

• Body Hex Size: 1/2 in
• Length: 0.875 in
• Liquid Flow Rate Range: 0.3 - 3 gpm
• Liquid Pressure Range: 40 - 4,000 psi
• Rated Pressure: 40 psi
• Relative Drop Size Range: 500 - 1,000 µm
• Spray Pattern: Flat Fan
