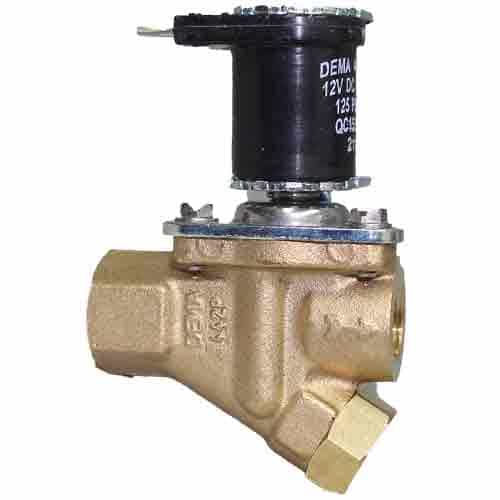

Dema 443P.2 3/8" Diaphragm Solenoid Valve with 12VDC Coil
Brand:
Mfr. Model #:
443P.2
KR Part #:
SOD443P12
Weight:
0.60 lbs
Availability:
4
Low Inventory Get It Today
This valve has a 3/8" orifice and is constructed of brass.
Prop 65
Technical Specifications
Max PSI: 125
Voltage DC: 12
Product Description
Normally Closed Mini Diaphragm Solenoid Valve with 12VDC Coil
When energized, the plunger is pulled to the top plug and opens a small "pilot port" in the center of the diaphragm plate. When de-energized, the solenoid plunger is pushed from the top plug by the kick-off spring and closes the pilot port. Fluid passes through the diaphragm bleed hole until pressure is equalized on both sides to shut off the large port.
- 125 Max PSI
- Brass body material
- 3/8" N.P.T. pipe size
- CV flow factor #1
- 7.75 GPM at 60 PSI
- 12VDC coil
