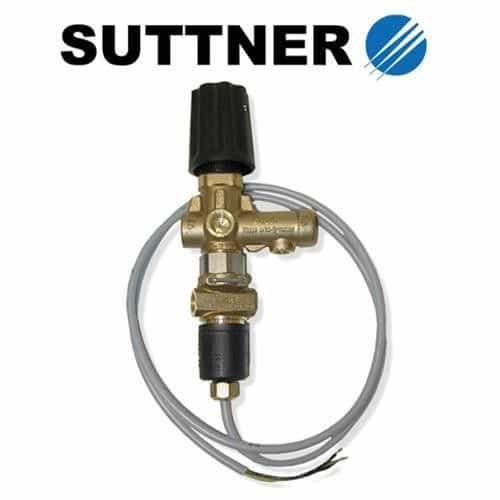

Suttner 200261550 Stainless Steel Unloader Valve - Microswitch, 3/8 Inch FPT, 3625 PSI, 8 GPM
Brand:
Mfr. Model #:
200261550
KR Part #:
SUT261S
Weight:
1.84 lbs
Availability:
6
Low Inventory Get It Today
A pressure relief valve made with stainless steel. Utilizes 3/8-inch FPT inlets and outlets. Handles a maximum flow rate of 8.0 GPM and a pressure of 3625 PSI.
Technical Specifications
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max PSI: 3625
Max GPM: 8
Max Temperature: 176 degrees F
Product Description
Adjustable Unloader
The Suttner 200261550 is an unloader constructed with stainless steel with PTFE and Viton seals. Engineered with a straight flow-through design that minimizes pressure loss a fluid flows through the valve. Features adjustable limit settings for both the maximum and minimum pressures. Designed for easy access to the bypass valve for repairs.
Specifications:
- PSI Min: 500
- PSI Max: 3625
- Maximum Temperature: 176°F
- Flow Rate: 8 GPM
- Inlet: 3/8" FPT
- Outlet: 3/8" FPT
- AMPS: 125 VAC 5A-250 VAC 3A
- Bypass Connection: 1/4"
- Weight: 1.34 lbs.
