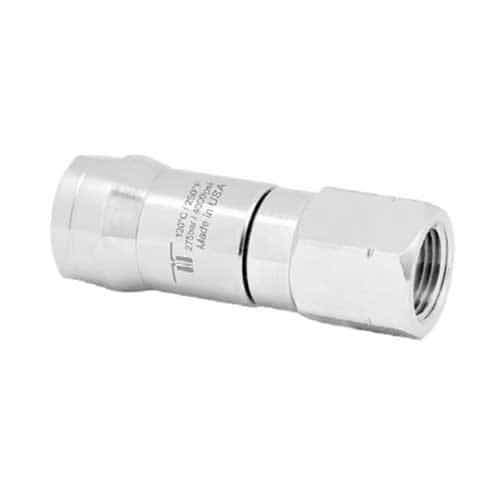

Mosmatic 30.014 DGS High-Pressure Nickel-Plated Brass Swivel - 1/4 F x 3/8 F

Brand:
Mfr. Model #:
30.014
KR Part #:
SWM30014
Weight:
0.31 lbs
Out of Stock - Pre-Order Now
Add to Cart for Price
Brass construction nickel-plated swivel with G1/4" F x 3/8" FNPT connections. 4000 PSI.



Technical Specifications

Inlet Port: 1/4 inch
Max PSI: 4000
Max Temperature: 250 degrees F
RPM: 30

Product Description

DGS Nickel-Plated Brass Inline Swivel

The Mosmatic 30.014 swivel is ideal for low and high pressure cleaning, hose connections, ceiling booms, and hydraulic systems. This commercial swivel is made with nickel-plated brass, has a 4000 PSI maximum pressure rating, and has G1/4" and 3/8" NPT female connections.


Specifications and Features:
  • 4000 PSI
  • 250 Degrees Fahrenheit maximum temperature
  • G1/4" F port
  • 3/8" NPTF port
  • 1/4" nominal width
  • Brass nickel-plated body
  • Maximum 30 RPM speed
  • Throughput Medium: 3-12 pH filtered 10 microns compressed air
  • 1x thrust ball bearing
  • 1x radial ball bearing
  • O-ring NBR inner part seal
  • Very low torque
  • Sealed stainless steel bearings
  • Maintenance free
  • Easy rotation at maximum pressure
