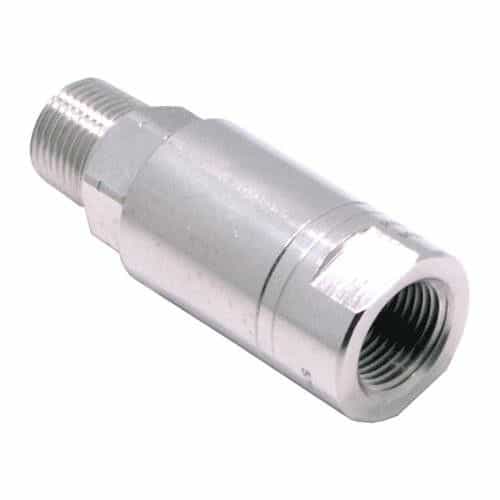

3/8" - Triple Bearing Rotary Union

Mosmatic DGL 31.153 is rotary union made with nickel plated brass to provide resistance to corrosion. Utilizes a triple bearing system to handles high-speed applications at a maximum speed of 1000 RPM. Designed to endure a maximum pressure of 4000 PSI. Used in high pressure cleaning technology, parts washers, tire cleaners and applications involving self-rotating machinery.

Specifications:

• Pressure: 4000 PSI (27.5 MPa)

• Temperature: 90°F (at 1'000 rpm), 250°F (at 30 rpm)

• RPM: max. 1000 RPM

• Body: DGL: Brass, Nickel Plated

• Inner part: Stainless Steel

• Seal: O-ring NBR (optional: EPDM or FKM)

• Bearing: 2x Radial Ball Bearings, 2x Thrust Ball Bearing

• Throughput: pH 3-12

• Medium: Filtered 10 Microns, Compressed Air (290 PSI)


Features:

• High Speed Triple Bearing System

• Corrosion Resistant

• Solid Construction

• Long Service Life

• Maintenance Free


Applications:

• Thrust And Radial Forces

• High Flow

• Automatic Car Wash Systems

• High Pressure Hose Reels


Dimensions:

• G1: 3/8" NPTF

• G2: 3/8" NPTM

• NW: 1/4"

• SW1: 0.87

• SW2: 0.75

• L1: 2.59

• L2: 0.47

• D: 0.98

• Weight: 5.8 oz.
