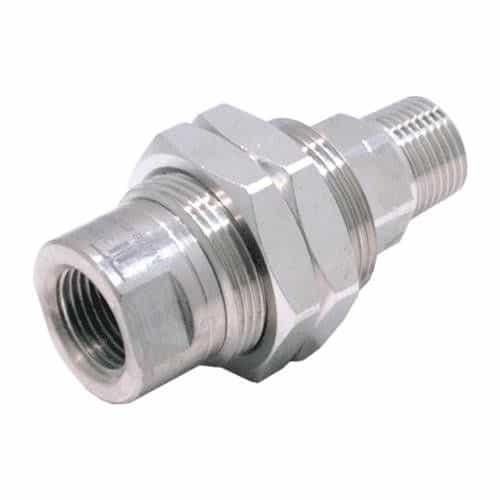

Mosmatic 33.153 Nickel Plated Brass DGG Rotary Union Swivel - 3/8 Inch NPT, 4000 PSI

Brand:
Mfr. Model #:
33.153
KR Part #:
SWM33153
Weight:
0.75 lbs
Usually Ships in 2 Weeks
Add to Cart for Price
A rotary union swivel made with nickel plated brass. Resistant to corrosion. Handles a maximum pressure of 4000 PSI and a maximum speed of 1000 RPM.



Technical Specifications

Max PSI: 4000
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
RPM: 1000
Max Temperature: 250 degrees F

Product Description

Triple Bearing Rotary Union

Mosmatic DGG 33.153 is made with nickel plated brass that resists corrosion and endures a maximum pressure of 4000 PSI. Equipped with a triple bearing system for compatibility with high-speed applications. Engineered for maintenance free operation. Used in high pressure cleaning technology, parts washers, tire cleaners and self-rotating applications.

Specifications:

  • Pressure: 4000 PSI (27.5 MPa)
  • Temperature: 90°F (at 1000 rpm), 250°F (at 30 rpm)
  • RPM: Max. 1000 RPM
  • Body: DGG: Brass, Nickel Plated
  • Inner Part: Stainless Steel
  • Seal: O-Ring NBR (Optional: EPDM or FKM)
  • Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing
  • Throughput: pH 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 PSI)

Features:

  • High speed triple bearing system
  • Bulkhead fitting for mounting
  • Corrosion resistant
  • High quality and precision
  • Maintenance free

Applications:

  • High Pressure Cleaning Technology
  • Parts Washers
  • Tire Cleaners
  • Self-Rotating Applications

Dimensions:

  • G1: 3/8" NPTF
  • G2: 3/8" NPTM
  • NW: ¼"
  • SW1: 0.87
  • SW2: 0.75
  • SW3: 1.34
  • L1: 2.59
  • L2: 0.47
  • Weight: 0.75 oz
