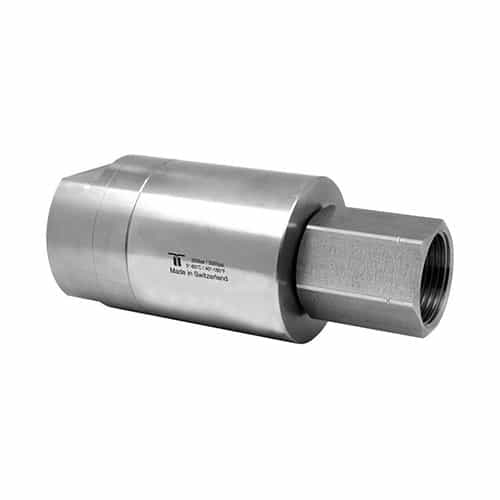

Mosmatic 34.412 Stainless Steel DGR Rotary Union Swivel - 1 Inch NPTF, 3000 PSI

Brand:
Mfr. Model #:
34.412
KR Part #:
SWM34412
Weight:
3.69 lbs
Usually Ships in 2 Weeks
Add to Cart for Price
Designed for high pressure applications that involve thrusting and radial forces. Operates at 3000 PSI. Stainless steel construction resists corrosion.



Technical Specifications

Max PSI: 3000
-- SELECT ONE --:
Max Temperature: 180 degrees F
Inlet Port: 1 inch
Outlet Port: 1 inch

Product Description

Quadruple Bearing Swivel

Designed for use in applications involving thrust and radial forces, high pressure, industrial or food service applications. Features a quadruple bearing system with a high flow. Constructed with stainless steel to resist corrosion.

Specifications:

  • Pressure: 150-3000 PSI (1-20mpa)
  • Temperature: 40°F - 180°F
  • Body: Stainless Steel
  • Inner Part: Stainless Steel
  • Seal: O-Ring NBR (Optional: EPDM Or FKM)
  • Bearing: 2x Radial Ball Bearings, 2x Thrust Ball Bearings
  • Throughput: Ph 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 PSI)
  • Weight 60.0 oz
  • Max. RPM 130

Dimensions:

  • G1 (F) 1"NPTF
  • G3 (F) 1"NPTF
  • NW 1"
  • SW1 1.81
  • SW2 1.42
  • L1 5.55
  • L2 3.78
  • D1 2.36
