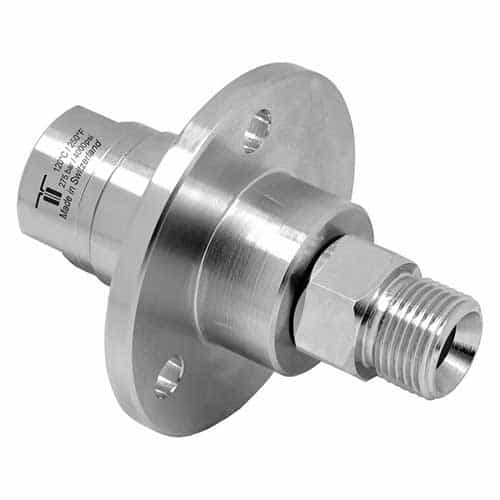

Mosmatic 35.163 Nickel Plated Brass DGF Rotary Union Swivel - 3/8 Inch NPT, 4000 PSI

Brand:
Mfr. Model #:
35.163
KR Part #:
SWM35163
Weight:
0.70 lbs
Out of Stock - Pre-Order Now
Add to Cart for Price
A rotary union swivel made with nickel plated brass. Resists corrosion and requires minimal maintenance. Handles a maximum pressure of 4000 PSI and maximum speeds of 1000 RPM.



Technical Specifications

Max PSI: 4000
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 250 degrees F

Product Description

Triple Bearing Rotary Union

Mosmatic DGF 35.163 is made with nickel plated brass that resists corrosion and endures a maximum pressure of 4000 PSI. Utilizes a high-speed triple bearing system for high-speed applications at a maximum of 1000 RPM. Engineered for maintenance free operation. Used in high pressure cleaning technology, parts washers, tire cleaners and self-rotating applications.

Specifications:

  • Pressure: 4000 PSI (27.5 mpa)
  • Temperature: 90°F @ 1000 RPM, 250°F @ 30 RPM
  • RPM: Max. 1000 RPM
  • Body: Brass, Nickel Plated
  • Inner Part: Stainless Steel
  • Seal: O-ring NBR (optional: EPDM or FKM)
  • Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing
  • Throughput: pH 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 PSI)

Features:

  • High Speed Triple Bearing System
  • Body Design for Easy Installation
  • High Precision and Quality
  • Maintenance Free
  • Applications:
  • High Pressure Cleaning Technology
  • Parts Washers
  • Tire Cleaners
  • Self-Rotating Applications

Dimensions:

  • G1: 3/8" NPTF
  • G2: G3/8"M
  • NW: 1/4"
  • SW1: 0.87
  • SW2: 0.75
  • L1: 1.49
  • L2: 0.39
  • Weight: 11.6 oz
