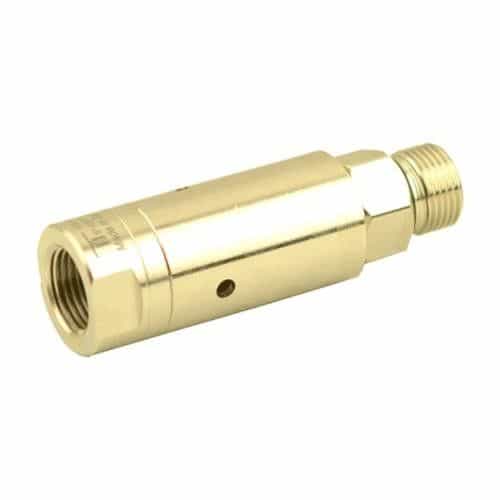

Mosmatic 36.163 Nickel-Plated Brass Rotary Union Swivel DXL - 3/8 In. NPTF x 3/8 In. M

Brand:
Mfr. Model #:
36.163
KR Part #:
SWM36163
Weight:
0.34 lbs
Availability:
4
Low Stock Warning
Add to Cart for Price

This is a self-rotating swivel designed with ceramic seals and made with nickel plated brass. Triple bearing system handles high speeds. Tolerates pressures up to 2500 PSI and speeds of 2000 RPM.

NOTE: This is a clearance item with limited inventory. All sales final - no returns.




Technical Specifications

Max PSI: 2500
RPM: 2000
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 40 degrees F
Type: Swivel

Product Description

Triple Bearing Swivel

Mosmatic's 36.163 rotary union utilizes provides a warning of seal failure through its weep holes. Withstands a maximum pressure of 2500 PSI and reaches a maximum speed of 2000 RPM. Swivel is crafted using nickel plated brass. Used for high pressure cleaning technology, parts washers, tire cleaners and high rpm applications.

This is a clearance item with limited inventory. All sales final - no returns.

Specifications:


  • Pressure: 2500 PSI (17 Mpa)

  • Temperature: 40°F (At 2'000 Rpm)

  • RPM: Max. 2000 RPM)

  • Body: DXL: Brass, Nickel Plated, DXLI: Stainless Steel/Li

  • Inner Part: Stainless Steel

  • Seal: Ceramic

  • Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing

  • Throughput: Ph 3-12

  • Medium: Filtered 10 Microns, Compressed Air (290 Psi)


Features:


  • High Speed Triple Bearing System

  • Seal Failure Warning, Through Weep Holes

  • Stainless Steel

  • Maintenance Free


Dimensions:


  • G1: 3/8" NPTF

  • G2: G3/8"M

  • NW: 1/4"

  • SW1: 0.87

  • SW2: 0.75

  • L1: 3.14

  • L2: 0.39

  • D1: 0.98

  • Weight: 0.34 lbs.


Applications:


  • High Pressure Cleaning Technology

  • Parts Washers

  • Tire Cleaners

  • High Rpm

Purchase spare seals here!
