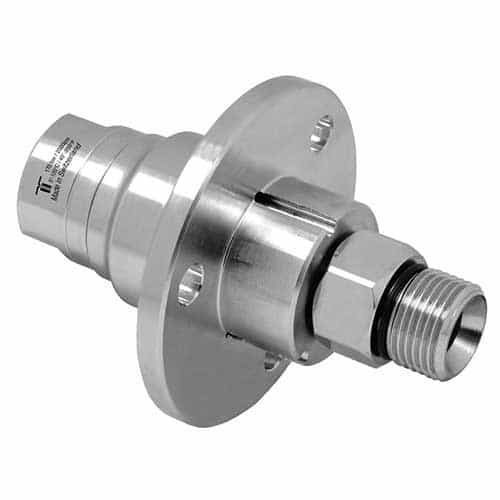

Flanged Swivel

This rotary union utilizes ceramic seals and incorporates a seal failure warning system through its weep holes. Sustains a maximum of 2500 PSI and 2000 RPM. Swivel is crafted using nickel plated brass. Used for surface cleaners, parts washer, tire cleaners, high pressure, self-rotating applications.

Specifications:

• Pressure: 2500 PSI (17 MPa)

• Temperature: 40°F-250 °F (max. 2000 RPM)

• RPM: 2000 RPM

• Body: DXF: Brass, Nickel Plated

• Inner Part: Stainless Steel

• Seal: Ceramic

• Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing

• Throughput: pH 3-12

• Medium: Filtered 10 Microns, Compressed Air (290 Psi)


Features:

• Flange for easy installation

• Seal failure warning, through weep holes

• Maintenance free

• Ceramic seals


Dimensions:

• G1: 1/4"NPTF

• G2: G3/8"M

• NW: 1/4"

• SW1: 0.87

• SW2: 0.75

• L1: 1.49

• L2: 0.39

• Weight: 13.0 oz

Applications:

• High RPM

• Self-Rotating

• Surface Cleaners

• Parts Washer

• Tire Cleaners
