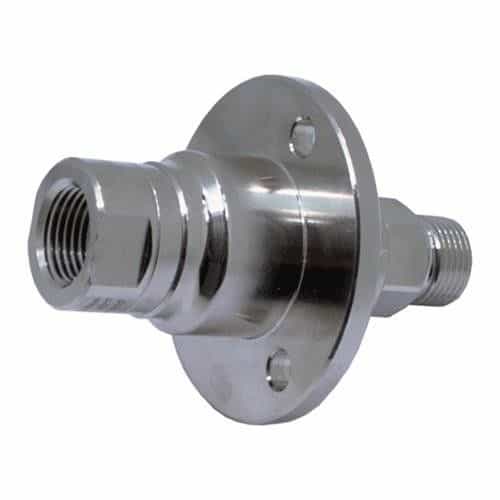

Mosmatic 38.163 Self-Rotating Rotary Union Swivel DXF With Ceramic Seals - 2500 PSI, 2000 RPM, 3/8 Inch NPTF, 3/8 Inch M

Brand:
Mfr. Model #:
38.163
KR Part #:
SWM38163
Weight:
0.66 lbs
In Stock
Add to Cart for Price
This is a self-rotating swivel constructed with with nickel plated brass and ceramic seals. Utilizes a seal failure warning system. Reaches a maximum pressure of 2500 PSI.



Technical Specifications

Max PSI: 2500
RPM: 2000
Max Temperature: 250 degrees F
Max Temperature: 250 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch

Product Description

Flanged Swivel

This rotary union utilizes ceramic seals and features a seal failure warning system through its weep holes. Withstands a maximum pressure of 2500 PSI and reaches a maximum speed of 2000 RPM. Swivel is crafted using nickel plated brass. Used for surface cleaners, parts washer, tire cleaners, high pressure, self-rotating applications.

Specifications:

  • Pressure: 2500 PSI (17 MPa)
  • Temperature: 40°F-250 °F (max. 2000 RPM)
  • RPM: 2000 RPM
  • Body: DXF: Brass, Nickel Plated
  • Inner Part: Stainless Steel
  • Seal: Ceramic
  • Bearing: 2x Radial Ball Bearings, 1x Thrust Ball Bearing
  • Throughput: pH 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 Psi)

Features:

  • Flange for easy installation
  • Seal failure warning, through weep holes
  • Maintenance free
  • Ceramic seals

Dimensions:

  • G1: 3/8" NPTF
  • G2: G3/8" M
  • NW: 1/4"
  • SW1: 0.87
  • SW2: 0.75
  • L1: 1.49
  • L2: 0.39
  • Weight: 12.7 oz

Applications:

  • High RPM
  • Self-Rotating
  • Surface Cleaners
  • Parts Washer
  • Tire Cleaners
