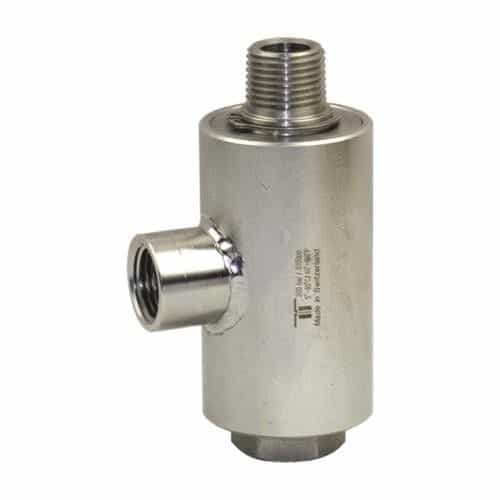

Mosmatic 41.261 Stainless Steel 90 Degree WDRS Rotary Union Swivel - 1/2 Inch NPT FxM, 3000 PSI, 150 RPM

Brand:
Mfr. Model #:
41.261
KR Part #:
SWM41261
Weight:
2.00 lbs
Availability:
2
Low Stock Warning
Add to Cart for Price

A swivel designed for high pressure hose reels and automatic car washes. Constructed with sturdy materials to deliver a longer life and reduce maintenance. Handles a maximum pressure of 3000 PSI.

Note: No front to back forces allowed.




Technical Specifications

RPM: 150
Max PSI: 3000
Min PSI: 150
Max Temperature: 180 degrees F
Min Temperature: 40 degrees F

Product Description

Dual Bearing Rotary Union

Mosmatic's 41.261 is 90-degree swivel that features a dual bearing system to provide a smooth rotation. Constructed with stainless steel to resist corrosion in wet environments like car washes. Constructed with durable components to minimize maintenance. Handles a maximum pressure of 3000 PSI and an RPM of 150.

Specifications:

  • Pressure: 150-3000 PSI
  • Temperature: 40°F-180°F
  • Torque: max. 37 ft-lbs.
  • Max RPM: 150
  • Body: Stainless Steel
  • Inner Part: Stainless Steel
  • Seal: O-ring NBR (optional: EPDM or FKM)
  • Bearing: 2x radial ball bearings
  • Throughput: pH 3-12
  • Medium: filtered 10 microns, compressed air (290 psi)

Features:

  • Dual bearing system
  • Complete stainless-steel construction
  • Rugged design
  • Maintenance free

Applications:

  • Automatic car wash
  • Industrial application
  • High pressure hose reels
  • High flow
Compatible Systems:
  • Hydro-Spray
  • Rainmaker
  • AVW
  • Southern Pride

Dimensions:

  • G1 (F): 1/2" NPTF
  • G2 (M): 1/2" NPTM
  • NW: 1/2"
  • SW: 1.06
  • H: 1.57
  • L1: 4.33
  • L2: 3.15
  • L3: 0.60
  • L4: 2.36
  • D: 1.77
  • Weight: 28oz
