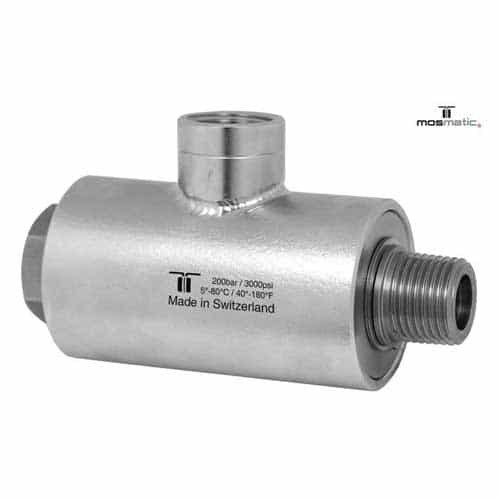

Mosmatic 41.461 Stainless Steel WDRS 1 in. x 1 in. Rotating 90 Degree Swivel - 3000 PSI
Brand:
Mfr. Model #:
41.461
KR Part #:
SWM41461
Weight:
3.00 lbs
Technical Specifications
Max PSI: 3000
Max Temperature: 180 degrees F
RPM: 150
Inlet Port: 1 inch
Outlet Port: 1 inch
Product Description
Single-Flow 1" NPT x 1" NPT Self-Rotating Swivel
The Mosmatic 41.461 self-rotating 90° swivel is made with steel and has 1" ports. It is rated to handle up to 3000 psi, 150 rpm, and 180° Fahrenheit.
Rotary unions allow you to transfer fluids from stationary items like hose and piping to rotating devices in car wash systems, industrial machine cleaning, and surface cleaners.
- Inlet: 1" NPT (F)
- Outlet: 1" NPT (M)
- Maximum Pressure: 3000 PSI
- Maximum Speed: 150 RPM
- Maximum Temperature: 180° Fahrenheit
- Body Diameter: 2.36"
- Body Construction: Stainless steel
- Type: WDRS
- Dual radial ball bearings
- Carbide seal
- Self-rotating
- Standards: ISO 9001
- Throughput Medium: pH 3-12 filtered 10 microns compressed air
- Seal failure warning through weep holes
